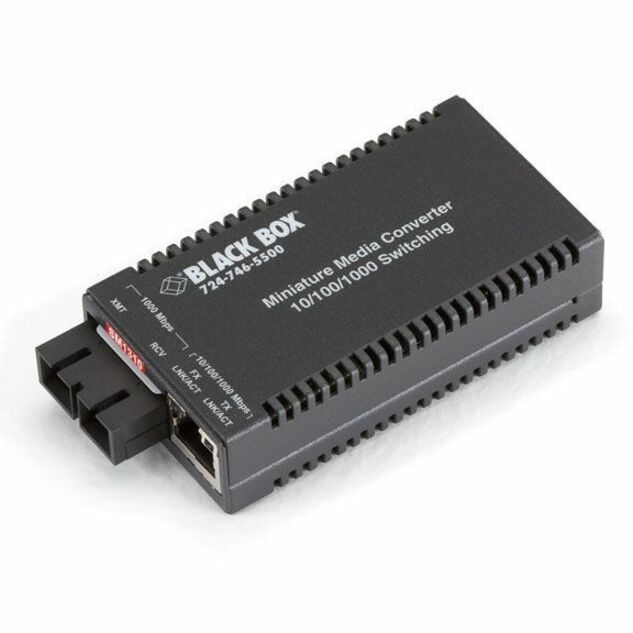

Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. This single-strand fiber media converter enables you to make two Ethernet connections over a duplex fiber cable, so you need to run less fiber. Black Box Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC. This single-mode duplex fiber converter supports distances of up to 40 kilometers (24.8 mi.). For extra versatility, you can power the Miniature Media Converter through the external AC power supply included with each converter or through the optional rackmount PowerTray (sold separately).
- Compliant to EN62368
- Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
- Powered by a universal AC power supply or the optional rackmountable PowerTray.
- Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
- Supports link fault pass through for trouble shooting
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Power Source | AC Adapter |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Frequency | 60 Hz |
| Maximum Distance Supported | 40 km |
| Manufacturer | Black Box Corporation |
| Misc Ports | |
|---|---|
| Total Number of Ports | 3 |
| SC Port Type | Duplex |
| Number of SC Ports | 2 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Miscellaneous | |
|---|---|
| Product Name | MultiPower Miniature Transceiver/Media Converter |
