- Autosensing copper ports make them perfect for migrating networks.
- Accepts 1250-Mbps SFPs.
- Use as standalone media converters or rackmount in the optional PowerTray.
- Powered by its universal AC power supply, a PC's USB port, or the optional rackmountable PowerTray.
- Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
- Easy to install. Just plug and play.
- Compact size.
- Uses inexpensive CAT5e twisted-pair cable on the copper side.
- Features Link Fault Pass-Through (LFPT).

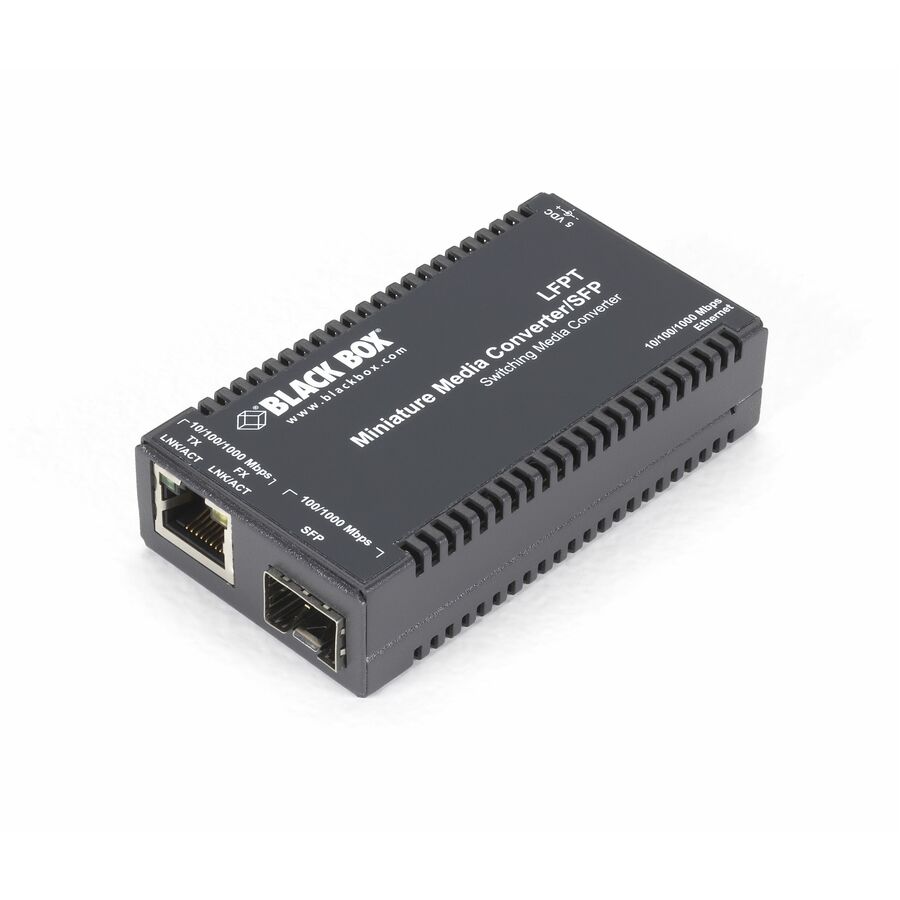

This Black Box Multipower Miniature Media Converter links 10-, 100-, or 1000-Mbps copper segments to 1000 Mbps fiber cabling. An SFP port enables you to use an SFP to link the converter to fiber cable. Choose from multimode and single-mode SFPs. With a single-mode SFP, the media converter supports distances up to 80 kilometers (49.7 mi.), depending on the model you order. For extra versatility, you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (which plugs into a PC's USB port and is sold separately), or through the optional rackmount PowerTray (sold separately). The PowerTray provides power for up to 18 converters in only 5U of rack space. Rackmount ears are included.
- Compliant to EN62368
- Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
- Compact size; measures just 0.8"H x 1.8"W x 3.4"D
- Powered by a universal AC power supply or the optional rackmountable PowerTray
- Auto MDI/MDI-X means you never need to worry about what kind of cable to use
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Frequency | 50 Hz |
| Manufacturer | Black Box Corporation |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 9/125 µm |
| Fiber Mode Supported | Single-mode |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
