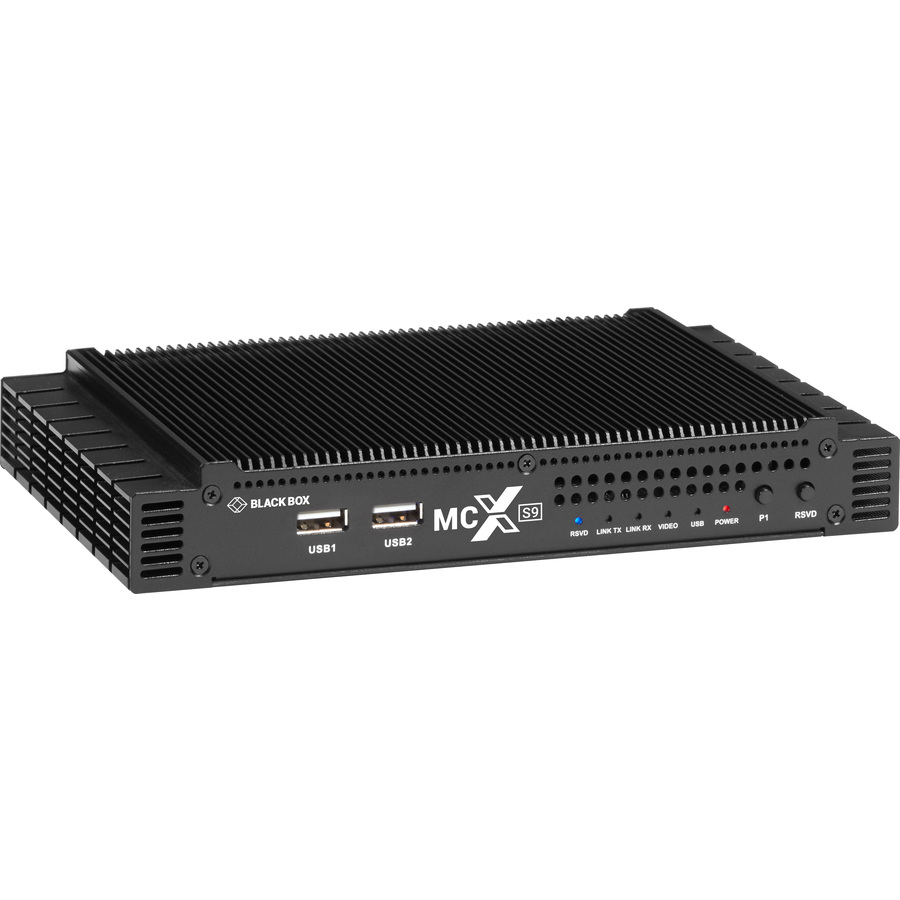

MCX is a next-generation AV-over-IP solution from Black Box. MCX distributes and extends 4K 60 Hz video and audio over IP and is made for 10-Gbps network infrastructures.
Uncompressed 4K 60 Hz 4:4:4 Video
MCX delivers the video quality high-end AV applications require to display eye-catching content: It extends uncompressed 4K 60 Hz 4:4:4 video to an unlimited number of displays without sacrificing latency, video quality or bandwidth. Even better, it supports up to 10-bit HDR using Software-Defined Video over Ethernet (SDVoE) - the latest software-based AV-over-IP platform for extension and control of AV systems on Ethernet or fiber networks.
Easy, Flexible Deployment
This video extension system is designed to work with any modern network, making installation simple. MCXS9 can be deployed on 10G networks over Ethernet, fiber, or both.
Advanced Video Wall Capabilities
MCXS9 allows you to display your video wall content any way you want. It offers advanced video scaling options, such as multi-view, picture-in-picture, split-screen, and more.
Zero Latency
This robust video distribution system's glass-to-glass encoding and decoding happen in real-time (0.03 milliseconds). This means you never deal with annoying lag or video delay.
Seamless Switching
MCX switches between video sources in less than 100 milliseconds with no artifacts or screen blink. This means you can switch video content super-fast without any noticeable distortion to your image.
Complete Control
The MCX Web UI gives you complete control over your AV network from your preferred web browser.
Comprehensive Connectivity
You can connect every essential AV distribution device to your MCX through its variety of ports: discrete RS-232, IR, secondary audio channel plus a separate 1-GbE connection.
- Advanced scaling options like multi-view, pip and more for video walls
- Seamless switching with no artifacts or screen blink
- Intuitive control through MCX Web UI
- Zero source to display latency
- Supports HDMI 2.0 and DisplayPort 1.2 over IP
- True 4K 60 Hz 4:4:4 video and uncompressed 10-bit HDR
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Screen / Display | |
|---|---|
| Maximum Resolution | 4096 x 2160 |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Audio Line Out | Yes |
| Audio Line In | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Mountable |
| General Features | |
|---|---|
| Functions | Video Switcher |
| Manufacturer | Black Box Corporation |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | MCX S9 Decoder |
