Supports 2048 MAC addresses and features a 384 KB buffer memory. The Auto MDI/MDI-X copper port autonegotiates for 10-/100-Mbps speed and autodetects full-or half-duplex mode. The Mini Industrial Media Converter can be installed easily on a DIN rail. Mounting kit included.
- Offers full wire-speed forwarding rates across the network
- Features an industrial-strength plastic case and complies with IEC 61000-Part 6-2 generic standards for electromagnetic compatibility (EMC) in industrial environments
- Layer 2 copper-to-fiber media conversion enables you to extend your network over fiber optic cable
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-FX |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Audio | |
|---|---|
| Digital Audio | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Rail-mountable |
| General Features | |
|---|---|
| Digital Audio/Video | No |
| Maximum Distance Supported | 20 km |
| Manufacturer | Black Box Corporation |
| Video Ports | |
|---|---|
| DVI | No |
| Misc Ports | |
|---|---|
| Management Port | No |
| Total Number of Ports | 2 |
| Parallel Port | No |
| ST Port Type | Duplex |
| Number of ST Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |

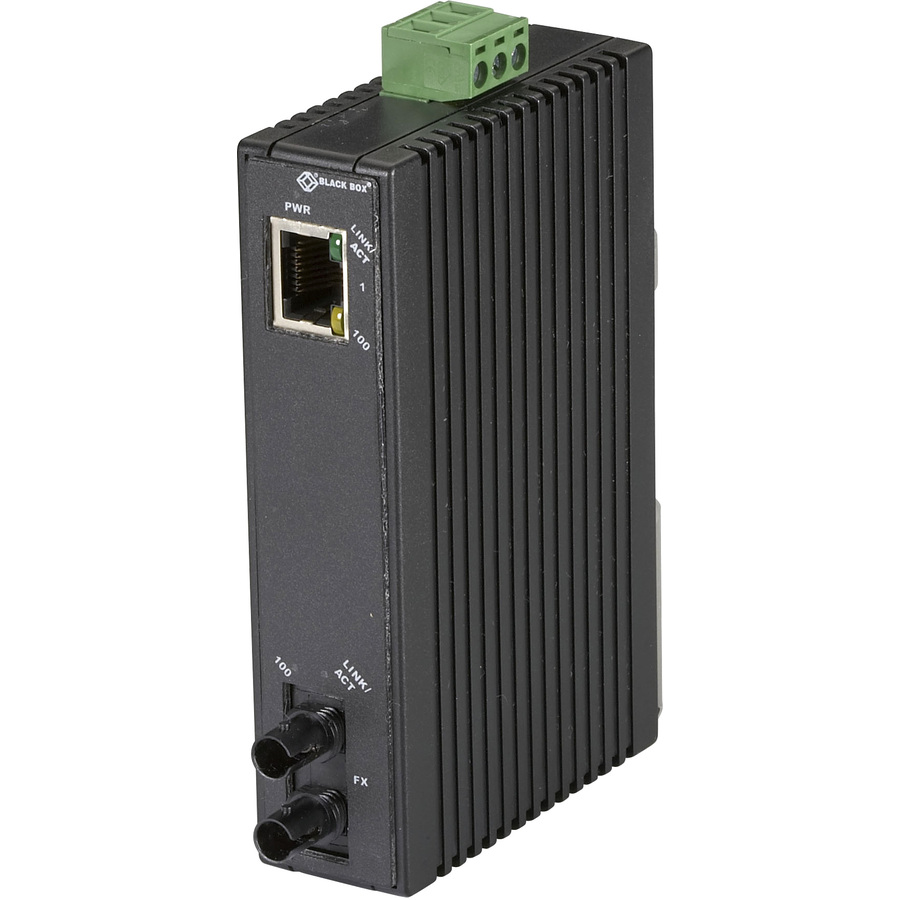

Black Box LMC270A-MM-ST Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x ST Ports - 10/100Base-TX, 1000Base-FX - 20 km - Rail-mountable - TAA Compliant
