Further Details
This tough media converter is the ideal way extend your network over fiber and also power a PoE device. Use it to link to faraway PoE devices such as IP security cameras, wireless access points, and VoIP phones.
The media converter features two autosensing 10/100/1000 UTP ports plus one single-mode fiber port that can extend a network connection up to 15 kilometers (9.3 mi.). Both UTP ports supports 802.3at Power over Ethernet, enabling it to power a PoE+ PD device; the other is a straightforward Ethernet port, which can be used for network expansion.
The Gigabit PoE+ Media Converter can be powered three ways: from an AC power supply (LGC5210-PS, order separately), via the DC power jack, or via the DC terminal block. When used with DC power to the terminal block, the converter supports an extended operating temperature range of +32 to +158° F (0 to +70° C).
The converter requires only one power source to power both the converter and a PoE+ device; you can position the PoE+ device up to 100 meters (328 feet) away from the converter, enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately).
This tough media converter is the ideal way extend your network over fiber and also power a PoE device. Use it to link to faraway PoE devices such as IP security cameras, wireless access points, and VoIP phones.
The media converter features two autosensing 10/100/1000 UTP ports plus one single-mode fiber port that can extend a network connection up to 15 kilometers (9.3 mi.). Both UTP ports supports 802.3at Power over Ethernet, enabling it to power a PoE+ PD device; the other is a straightforward Ethernet port, which can be used for network expansion.
The Gigabit PoE+ Media Converter can be powered three ways: from an AC power supply (LGC5210-PS, order separately), via the DC power jack, or via the DC terminal block. When used with DC power to the terminal block, the converter supports an extended operating temperature range of +32 to +158° F (0 to +70° C).
The converter requires only one power source to power both the converter and a PoE+ device; you can position the PoE+ device up to 100 meters (328 feet) away from the converter, enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately).
- Features an extended temperature range when used with DC terminal-block power
- Acts as power sourcing equipment (PSE) on the copper side to power PoE devices.
- Both UTP ports are autosensing with Auto MDI/MDI-X; one UTP port supports 802.3at PoE+.
- Features two 10-/100-/1000-Mbps copper ports and one 1000Mbps fiber port.
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Power Source | AC Adapter |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | No |
| Number of PoE+ (RJ-45) Ports | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Maximum Distance Supported | 15 km |
| Manufacturer | Black Box Corporation |
| Video Ports | |
|---|---|
| DVI | No |
| Misc Ports | |
|---|---|
| Management Port | No |
| Total Number of Ports | 3 |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |

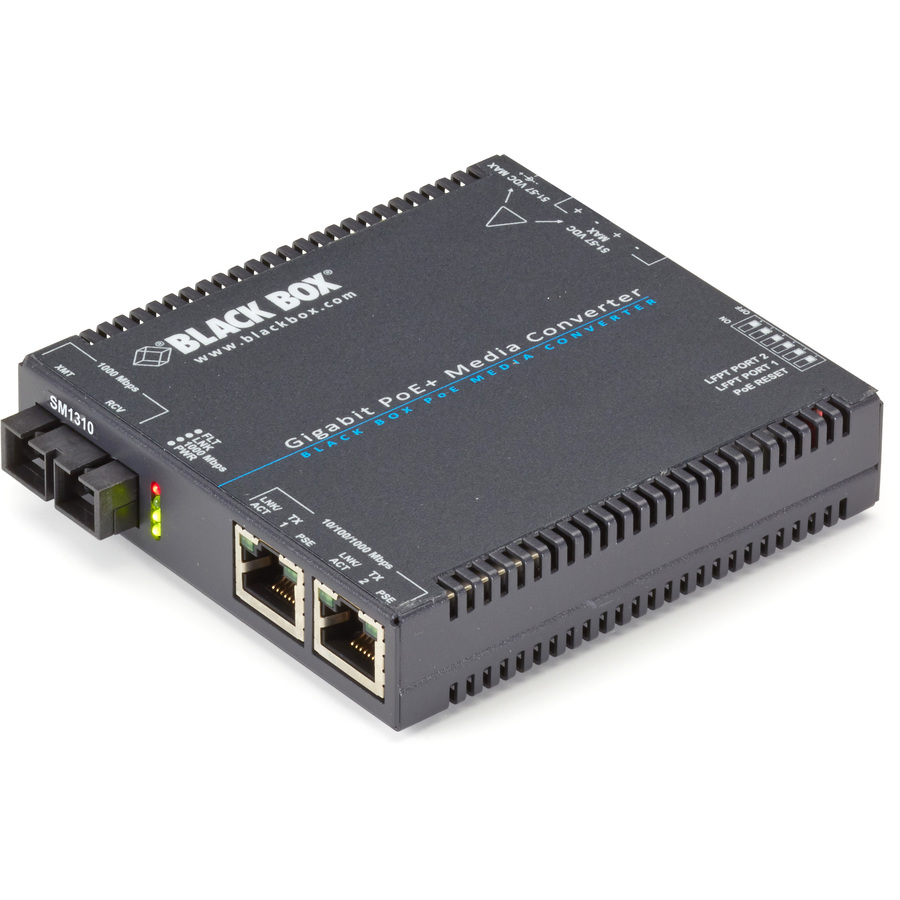

Black Box LGC5212A Transceiver/Media Converter - 2x PoE+ (RJ-45) Ports - 1 x SC Ports - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 15 km - AC Adapter - Rail-mountable, Wall Mountable - TAA Compliant
