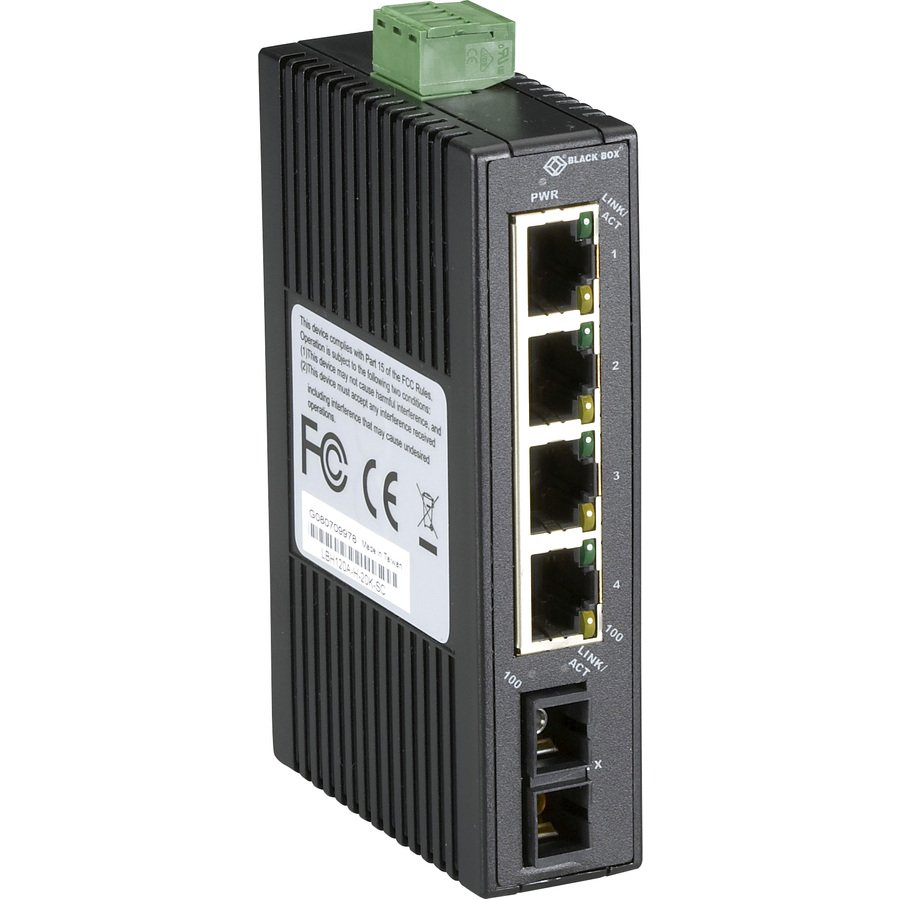

- An economical way to add four 10-/100-Mbps ports to your network.
- Features an industrial-strength plastic case and complies with IEC 61000-Part 6-2 generic standards for electromagnetic compatibility (EMC) in industrial environments.
- Offers full wire-speed forwarding rates across the network.
- Supports 2048 MAC addresses and features a 384 KB buffer memory.
- Can be installed easily on a DIN rail. Mounting kit is included.
- Order power supplies separately, see Related Products.
- 12-48VDC power input.
- Includes DIN rail mount kit.
- Suitable for dusty or dirty environments with a temperature range between -13 and +140� F (-25 to +60� C).
- Fiber interface is SM, SC, 20km range.
- One 100-Mbps fiber port and 4 10-/100-Mbps RJ45 switch ports.
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Power Source | DC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 4 |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail Mountable |
| General Features | |
|---|---|
| Manufacturer | Black Box Corporation |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x Fast Ethernet Uplink |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
