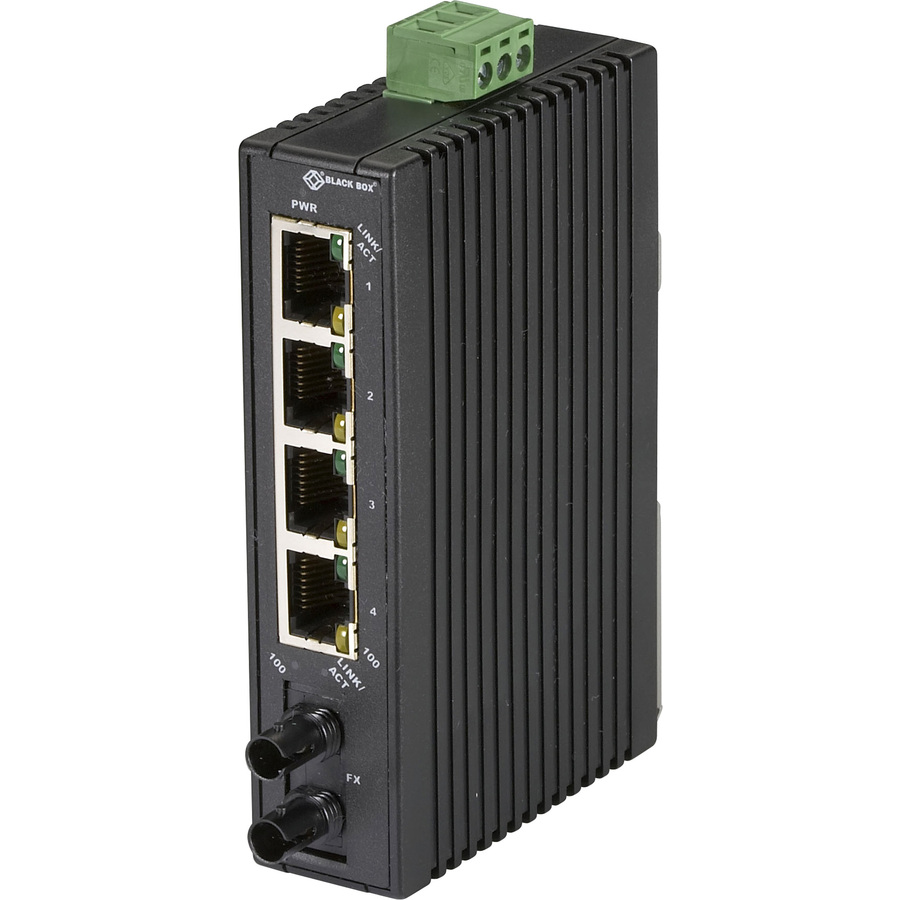

Black Box LBH 120 Ethernet Switch

$ 295.49 $ 295.49
$ 295.49

$ 295.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • LRE Port
  • Token Ring Port
  • Bypass
  • Network Technology
  • USB
  • Total Number of Network Ports
  • Fiber Mode Supported
  • Management Port
  • Port/Expansion Slot Details
  • Fiber Optic Cable Wavelength
  • ST Port Type
  • Number of ST Ports
  • Form Factor
  • Ethernet Technology
  • Layer Supported
  • Media Type Supported
  • TAA Compliant
  • Environmentally Friendly
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

  • An economical way to add four 10-/100-Mbps ports to your network.
  • Features an industrial-strength plastic case and complies with IEC 61000-Part 6-2 generic standards for electromagnetic compatibility (EMC) in industrial environments.
  • Offers full wire-speed forwarding rates across the network.
  • Supports 2048 MAC addresses and features a 384 KB buffer memory.
  • Can be installed easily on a DIN rail. Mounting kit is included.
  • Order power supplies separately, see Related Products.
    • 12-48VDC power input.
    • Includes DIN rail mount kit.
    • Suitable for dusty or dirty environments with a temperature range between -13 and +140� F (-25 to +60� C).
    • Fiber interface is MM, ST, 2km range.
    • One 100-Mbps fiber port and 4 10-/100-Mbps RJ45 switch ports.
    Brand
    Brand Black Box Corporation
    Power & Battery
    Power Source Power Supply
    Networking & Connectivity
    Token Ring Port No
    Network Technology 100Base-X
    Layer Supported 2
    USB Ports
    USB No
    Ethernet Port
    Number of Network (RJ-45) Por 4
    LRE Port No
    Total Number of Network Ports 5
    Size / Dimensions
    Form Factor DIN Rail Mountable
    General Features
    Manufacturer Black Box Corporation
    Misc Ports
    Management Port No
    Port/Expansion Slot Details 5 x Fast Ethernet Network
    ST Port Type Duplex
    Number of ST Ports 1
    Printer/Scanner/Fax Specs
    Media Type Supported Optical Fiber
    Cables
    Fiber Mode Supported Multi-mode
    Fiber Optic Cable Wavelength 1300 nm
    Compliance & Certification
    TAA Compliant Yes
    Environmentally Friendly Yes
    Miscellaneous
    Bypass No
    Black Box LBH 120 Ethernet Switch - 5 Ports - 10/100Base-TX, 100Base-X - 2 Layer Supported - Twisted Pair, Optical Fiber - Rail-mountable, DIN Rail Mountable - 5 Year Limited Warranty - TAA Compliant
