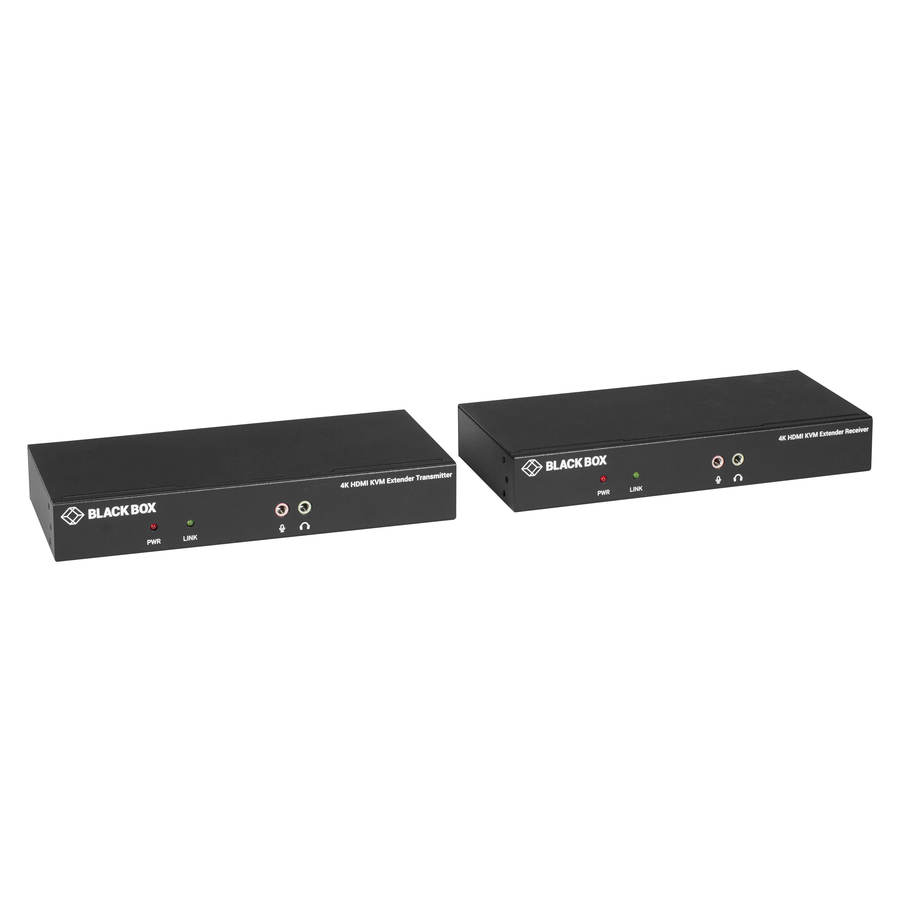

Black Box KVXLCHF-100 Video Extender Transmitter/Receiver

743.99 743.99
743.99

743.99 / Units
  • Brand
  • Transmitter Weight (Approxima
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Number of Input Devices Suppo
  • Number of Output Devices Supp
  • Connectivity Technology
  • USB
  • Number of USB Ports
  • HDMI Out
  • HDMI In
  • Number of HDMI Outputs
  • Number of HDMI Inputs
  • Serial Port
  • Form Factor
  • Receiver Width
  • Receiver Weight (Approximate)
  • Receiver Height
  • Receiver Depth
  • Transmitter Depth
  • Transmitter Height
  • Transmitter Width
  • Maximum Video Resolution
  • Media Type Supported
  • Graphics Modes
  • Maximum Operating Distance
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

The KVX HDMI/DisplayPort Single Head Console Extender lets you control a server, or computer over single-mode or multi-mode fiber optic cable at distances of up to 30 km (depending on the SFP used, fiber type, and fiber bandwidth). PC connection cables are included with this product making it a solution that is ready right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.

KVX Series Extenders are TAA compliant and backed by free lifetime technical support.

KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.

  • Local video port loopback for monitoring on transmitter (TX) unit
  • Supports EDID pass-through
  • Supports RS-232 peripheral (serial) devices
  • Bi-directional audio via speaker/mic connection
  • Transparent USB 2.0 extension supports HID devices, mass storage devices
  • Remote access up to 100 meter
  • Supports DisplayPort and HDMI video resolution up to 3840x2160 at 30Hz over Fiber optic
  • HDMI video resolution up to UHD 4K
Brand
Brand Black Box Corporation
GPU / Graphics
Graphics Modes 4K UHD
Networking & Connectivity
Connectivity Technology Wired
USB Ports
USB Yes
Number of USB Ports 5
HDMI Ports
HDMI Out Yes
HDMI In Yes
Number of HDMI Outputs 2
Number of HDMI Inputs 1
Camera / Webcam
Maximum Video Resolution 3840 x 2160
Input Devices
Number of Input Devices Suppo 1
Size / Dimensions
Transmitter Weight (Approxima 13.12 oz
Form Factor Desktop
Receiver Width 3.27"
Receiver Weight (Approximate) 13.28 oz
Receiver Height 0.83"
Receiver Depth 7.09"
Transmitter Depth 7.09"
Transmitter Height 0.83"
Transmitter Width 3.27"
General Features
Number of Output Devices Supp 2
Maximum Operating Distance 98425.20 ft
Manufacturer Black Box Corporation
Misc Ports
Serial Port Yes
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Compliance & Certification
Environmentally Friendly Yes
