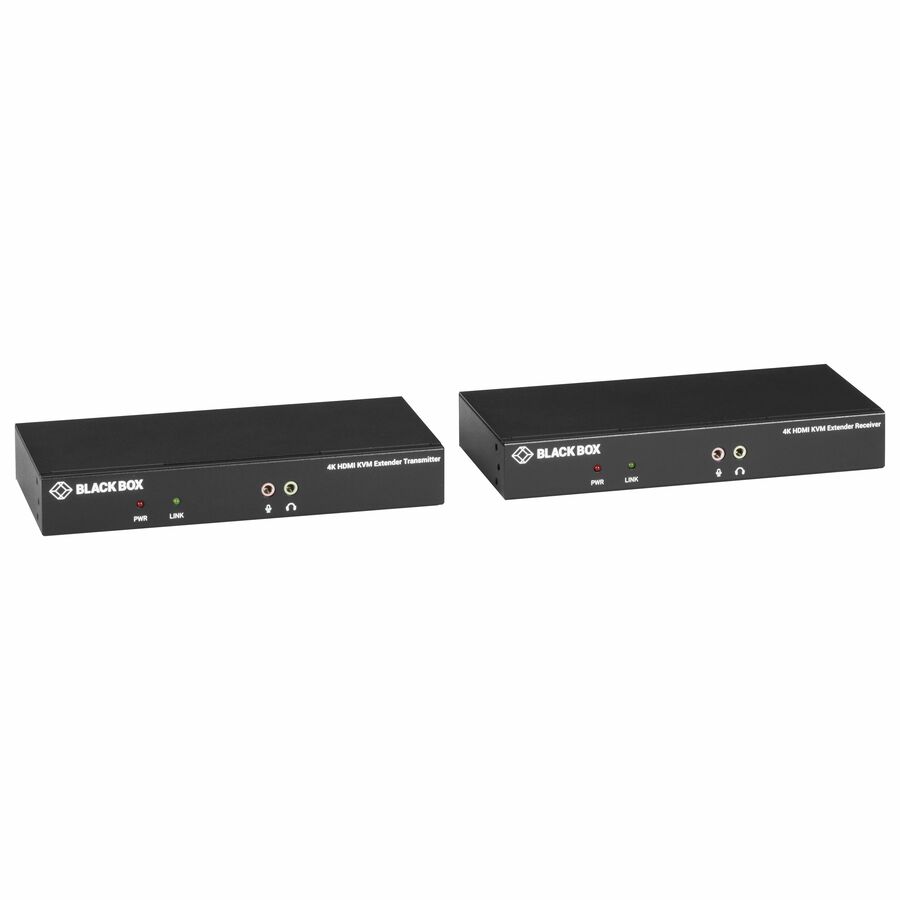

The KVX HDMI KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 UTP network cable connection at distances of up to 328 feet (100 meters). PC connection cables are included with this product, making it a solution that is ready to use right out of the box.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.
KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.
KVX is TAA compliant and backed by free lifetime technical support.
KVX is a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.
- Supports EDID pass-through
- Local video port loopback for monitoring on transmitter (TX) unit
- Bi-directional audio via speaker/mic connection
- Supports RS-232 peripheral (serial) devices
- Remote access up to 100 meters over CAT5/6
- Transparent USB 2.0 extension supports HID devices, mass storage devices
- HDMI video resolution up to UHD 4K (3840x2160 at 30Hz)
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K UHD |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 5 |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 2 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 13.12 oz |
| Form Factor | Desktop |
| Receiver Width | 3.27" |
| Receiver Weight (Approximate) | 13.28 oz |
| Receiver Height | 0.83" |
| Receiver Depth | 7.09" |
| Transmitter Depth | 7.09" |
| Transmitter Height | 0.83" |
| Transmitter Width | 3.27" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 328 ft |
| Manufacturer | Black Box Corporation |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | KVXLCH-100 Video Extender Transmitter/Receiver |
