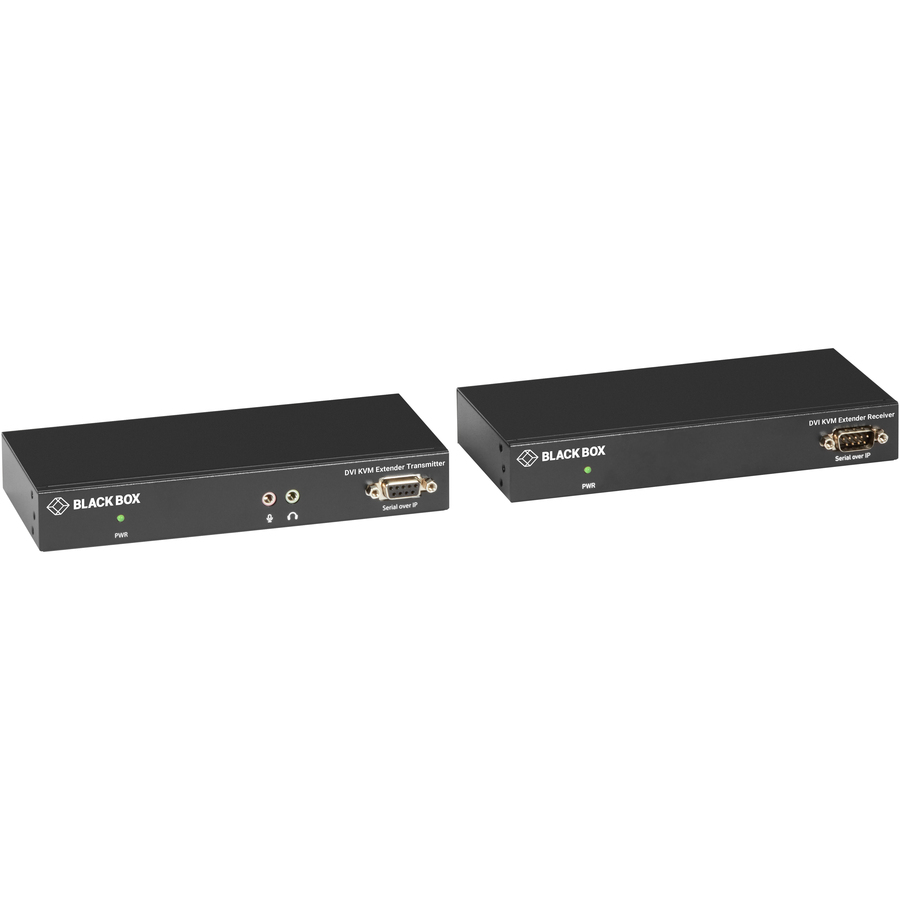

Black Box KVX Series KVM Extender Kit over CATx - DVI-D, USB 2.0, Serial, Audio, Local Video - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 330 ft Range - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 5 x USB - 3 x DVI - 5 V DC Input Voltage - TAA Compliant

634.99 634.99
634.99

634.99 / Units
  • Brand
  • Transmitter Weight (Approxima
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Additional Warranty Informati
  • Number of Local Users Support
  • Number of Remote Users Suppor
  • Connectivity Technology
  • USB
  • Number of USB Ports
  • Network (RJ-45)
  • DVI
  • Number of DVI Ports
  • Receiver Width
  • Receiver Weight (Approximate)
  • Receiver Height
  • Receiver Depth
  • Transmitter Depth
  • Transmitter Height
  • Transmitter Width
  • Maximum Video Resolution
  • Input Voltage
  • Maximum Operating Distance
  • TAA Compliant
  • Environmental Compliance
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Device Type
  • Manufacturer Website Address
  • Number of Computers Supported
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

The KVX DVI-D KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 UTP network cable connection at distances of up to 330 feet (100 meters). PC connection cables are included with this product, making it a solution that is ready to use right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. Available with support for one or two monitors, KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution.

KVX also includes local video, allowing access to an additional monitor at the transmitter side. It's perfect for any situation that requires monitoring of connected PCs.

This extender is TAA compliant and backed by free lifetime technical support. KVX is ideal for applications that require the console to be in a conveniently accessible location while the system equipment needs to reside in a safe place - away from dust, dirt, and harsh environmental influences. It also provides a cost-effective way of keeping sensitive data, such as financial and personal information, safe in a heavily secured data center while still allowing remote access to users.

  • Supports DVI-D video resolution up to 1920x1200 at 60 Hz
  • Local and remote units connect at distances of up to 330 feet (100m) using standard CAT5e/6 cables
  • Transparent USB 2.0 extension supports HID devices, mass storage devices
  • Supports RS-232 peripheral (serial) devices
  • Bi-directional audio via speaker/mic connection
  • Local DVI port loopback for monitoring on transmitter (TX) unit
  • Supports EDID pass-through
Brand
Brand Black Box Corporation
Power & Battery
Input Voltage 5 V DC
Networking & Connectivity
Connectivity Technology Wired
USB Ports
USB Yes
Number of USB Ports 5
Ethernet Port
Number of Network (RJ-45) Por 2
Network (RJ-45) Yes
Camera / Webcam
Maximum Video Resolution 1920 x 1200
Software & Licensing
Number of Local Users Support 1
Number of Remote Users Suppor 1
Size / Dimensions
Transmitter Weight (Approxima 12.64 oz
Receiver Width 7.09"
Receiver Weight (Approximate) 13.44 oz
Receiver Height 1.06"
Receiver Depth 3.27"
Transmitter Depth 3.27"
Transmitter Height 1.06"
Transmitter Width 7.09"
General Features
Maximum Operating Distance 330 ft
Manufacturer Black Box Corporation
Device Type KVM Extender
Number of Computers Supported 1
Video Ports
DVI Yes
Number of DVI Ports 3
Compliance & Certification
TAA Compliant Yes
Miscellaneous
Product Name USB 2.0 , Audio , Serial , KVX Series KVM Extender Kit over CATx - DVI-D , Local Video
Black Box KVX Series KVM Extender Kit over CATx - DVI-D, USB 2.0, Serial, Audio, Local Video - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 330 ft Range - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 5 x USB - 3 x DVI - 5 V DC Input Voltage - TAA Compliant
