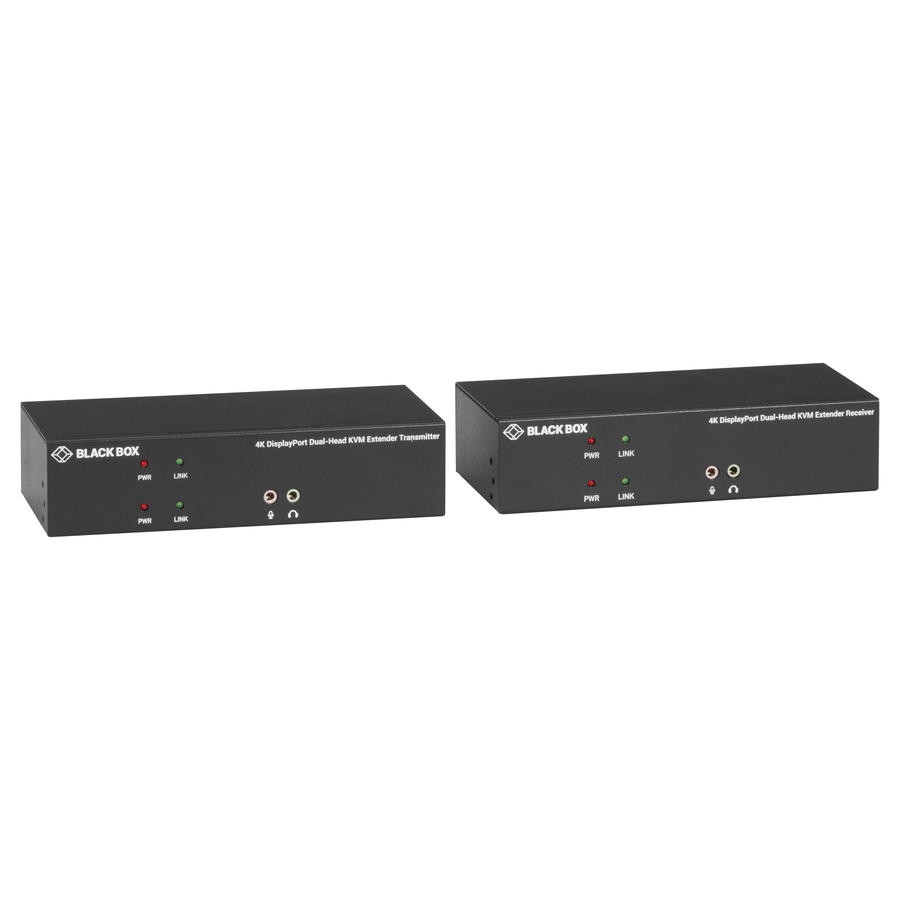

Black Box KVX KVXLCDPF-200 Video Extender Transmitter/Receiver

1,542.99 1,542.99
1,542.99

1,542.99 / Units
  • Brand
  • Transmitter Weight (Approxima
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Number of Input Devices Suppo
  • Number of Output Devices Supp
  • Connectivity Technology
  • USB
  • Number of USB Ports
  • DisplayPort
  • Receiver Width
  • Receiver Weight (Approximate)
  • Receiver Height
  • Receiver Depth
  • Transmitter Depth
  • Transmitter Height
  • Transmitter Width
  • Maximum Video Resolution
  • Media Type Supported
  • Graphics Modes
  • Maximum Operating Distance
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

The KVX Dual Head KVM Extender lets you control a server or computer over a single-mode or multimode cable at distances of up to 10 km (depending on the SFP used, fiber type, and fiber bandwidth). This extender also supports 4K video. PC connection cables are included with this product, making it a solution that is ready to use right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX Dual Head is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX Dual Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution.

KVX Dual Head also includes local video, allowing access to an additional monitor at the transmitter side. It's perfect for any situation that requires monitoring of connected PCs. This extender is TAA compliant and backed by free lifetime technical support.

KVX Dual Head is ideal for applications that require the console to be in a conveniently accessible location while the system equipment needs to reside in a safe place - away from dust, dirt, and harsh environmental influences. It also provides a cost-effective way of keeping sensitive data, such as financial and personal information, safe in a heavily secured data center while still allowing remote access to users.

  • DisplayPort dual-head 4K transmission up to 30 km over singlemode cable
  • Local and remote units connect at distances of up to 10 km using SFP below 1250 Mbps
  • Supports DisplayPort UHD video resolution up to 3840x2160 at 30Hz
  • Transparent USB 2.0 extension supports HID devices, mass storage devices
  • Supports RS-232 peripheral (serial) devices
  • Bi-directional audio via speaker/mic connection
  • Local video port loopback for monitoring on transmitter (TX) unit
Brand
Brand Black Box Corporation
GPU / Graphics
Graphics Modes 4K UHD
Networking & Connectivity
Connectivity Technology Wired
USB Ports
USB Yes
Number of USB Ports 5
DisplayPort
DisplayPort Yes
Camera / Webcam
Maximum Video Resolution 3840 x 2160
Input Devices
Number of Input Devices Suppo 2
Size / Dimensions
Transmitter Weight (Approxima 13.60 oz
Receiver Width 3.27"
Receiver Weight (Approximate) 13.60 oz
Receiver Height 0.83"
Receiver Depth 7.09"
Transmitter Depth 7.09"
Transmitter Height 0.83"
Transmitter Width 3.27"
General Features
Number of Output Devices Supp 2
Maximum Operating Distance 98425.20 ft
Manufacturer Black Box Corporation
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
