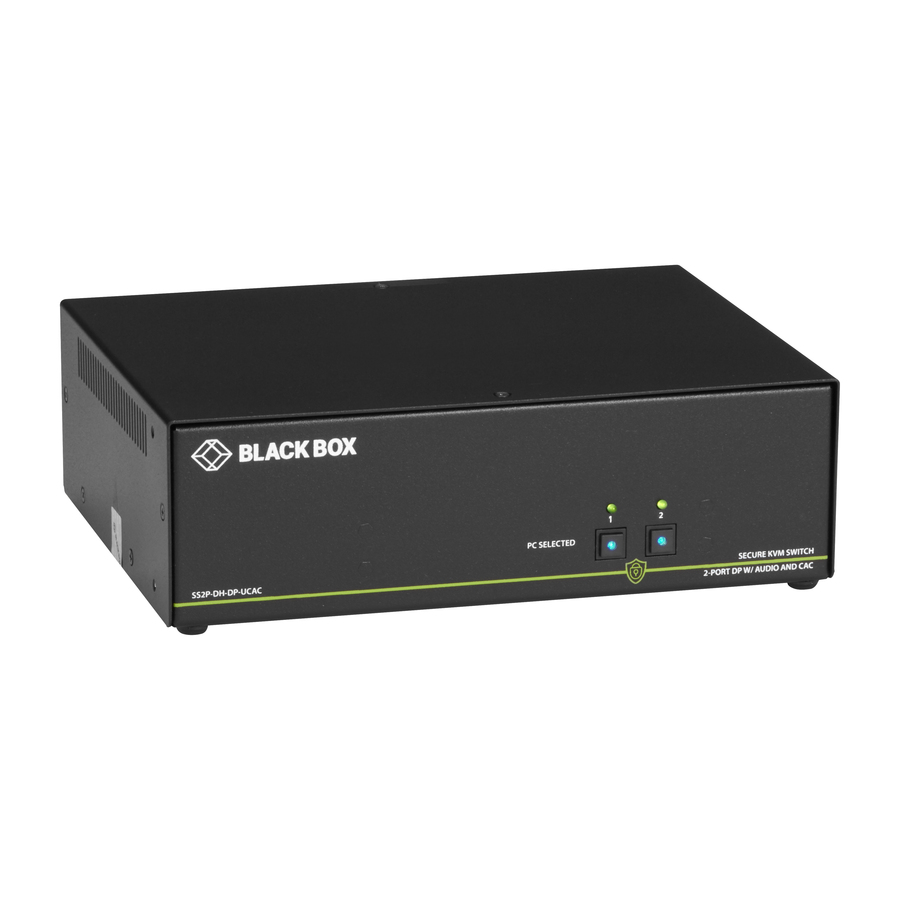

Black Box KVM Switchbox with CAC

749.49 749.49
749.49

749.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Number of Local Users Support
  • USB
  • Number of USB Ports
  • DisplayPort
  • Number of DisplayPorts
  • Form Factor
  • Maximum Video Resolution
  • Input Voltage Range
  • Input Voltage
  • Input Current
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Compliance
  • Packaged Quantity
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Manufacturer Website Address
  • Number of Computers Supported
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

The Black Box Secure KVM Desktop Switches allow a single operator to control two or four DisplayPort computers from a single workplace using one set of keyboard and mouse and two DisplayPort monitors. They provide peace of mind knowing that each connection is secure. Options include 2-, 4-, or or 4-port switches with CAC support.

The Secure KVM Desktop Switches protect your sensitive data using the latest technology. The switches have isolated channels to ensure that data is not leaked between secure ports and the outside world. To prevent eavesdropping attempts through vulnerable devices, the switches support uni-directional data flow from computer to peripheral. Mechanical, electrical, and optical isolation stop hacking and data leaks in environments where security is critical. Plus, secure EDID learning prevents unwanted and unsecure data from being transmitted through DDC lines. The Secure KVM Desktop Switches use protected firmware to keep intruders from re-programming or reading the firmware. Keyboard/internal cache wiping and chassis intrusion protection provide even more security. The Secure KVM Desktop Switches also use anti-tamper switches and tamper-evident seals to shield your confidential data.

Why Secure KVM?/strong>
Connecting peripherals such as monitor, keyboard, mouse, and speakers to a PC introduces potential data leakage and hacking risks. Secure KVM Switches are designed for use in any application where sensitive data must be protected, including defense, government agencies, and intelligence. Secure KVM Switches from Black Box are NIAP PP 3.0 certified and equipped with the highest security features that meet today's Information Assurance safe control standards. The switches contain unique hardware configurations that prevent data leakage between PCs and connected peripherals eliminating potential cyber threats.

  • Supports balanced speaker outputs and switching
  • Advanced and fully configurable CAC port
  • Non-reprogrammable ROM
  • Absolute secure and isolation between data paths
  • Secure EDID learning and emulation
  • Equipped with anti-tampering protection such as tamper evident hologram seals, chassis intrusion, fixed firmware and automatic keyboard data clearing
  • DisplayPort video up to UHD 4K (3840x2160 at 30Hz), USB HID, stereo audio
  • Tested and certified to NIAP Protection Profile version 3.0
Brand
Brand Black Box Corporation
Power & Battery
Input Voltage Range 100V AC to 240V AC
Input Voltage 230 V AC
Input Current 2 A
USB Ports
USB Yes
Number of USB Ports 4
DisplayPort
DisplayPort Yes
Number of DisplayPorts 6
Camera / Webcam
Maximum Video Resolution 3840 x 2160
Software & Licensing
Number of Local Users Support 1
Size / Dimensions
Form Factor Desktop
General Features
Manufacturer Black Box Corporation
Number of Computers Supported 2
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
