Black Box KVM Extender - DisplayPort 1.2 4K60, USB HID, Single-mode Fiber

$ 6,674.99 $ 6,674.99
$ 6,674.99

$ 6,674.99 / Units
  • Brand
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Number of Local Users Support
  • Connectivity Technology
  • USB
  • Number of USB Ports
  • DisplayPort
  • Maximum Video Resolution
  • Input Voltage Range
  • Input Voltage
  • Frequency
  • Graphic Mode
  • Maximum Operating Distance
  • TAA Compliant
  • Environmentally Friendly
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Manufacturer Website Address
  • Number of Computers Supported
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
  • This product is built to order (parts below are completely assembled prior to shipment).
  • Includes external power supply.

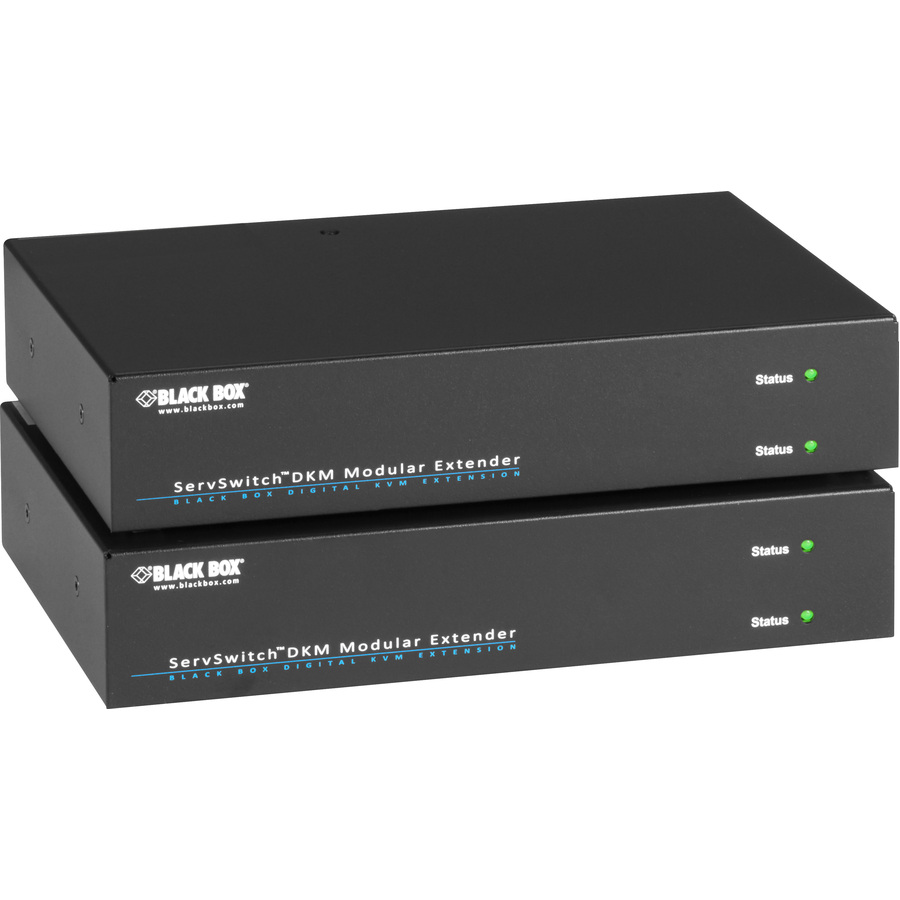

This DKM FX Fiber Extender Kit is comprised of 2 modular housing chassis with 2 slots and transmitter and receiver interface cards. The DKM FX extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.

These DKM FX components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM FX HD Video and Peripheral Matrix Switch setup, call our FREE Tech Support.

Supports integrated DisplayPort digital audio.

Audio format PCM can be transferred with a sample rate up to 96 Hz via the DisplayPort interface.
Supports up to 2 daughter cards.

  • Video resolutions up to 4K at 60 Hz, including 4096 x 2160 and 3840 x 2160 with 8- / 10-bit Color
  • USB HID signals.
  • Integrated DisplayPort digital audio. USB HID signals. Video resolutions up to 4K at 60 Hz, including 4096 x 2160 and 3840 x 2160.
Brand
Brand Black Box Corporation
GPU / Graphics
Graphic Mode 4K
Power & Battery
Input Voltage Range 100V AC to 240V AC
Input Voltage 240 V AC
Networking & Connectivity
Connectivity Technology Wired
USB Ports
USB Yes
Number of USB Ports 5
DisplayPort
DisplayPort Yes
Camera / Webcam
Maximum Video Resolution 4096 x 2160
Software & Licensing
Number of Local Users Support 1
General Features
Frequency 60 Hz
Maximum Operating Distance 16404.20 ft
Manufacturer Black Box Corporation
Number of Computers Supported 1
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
