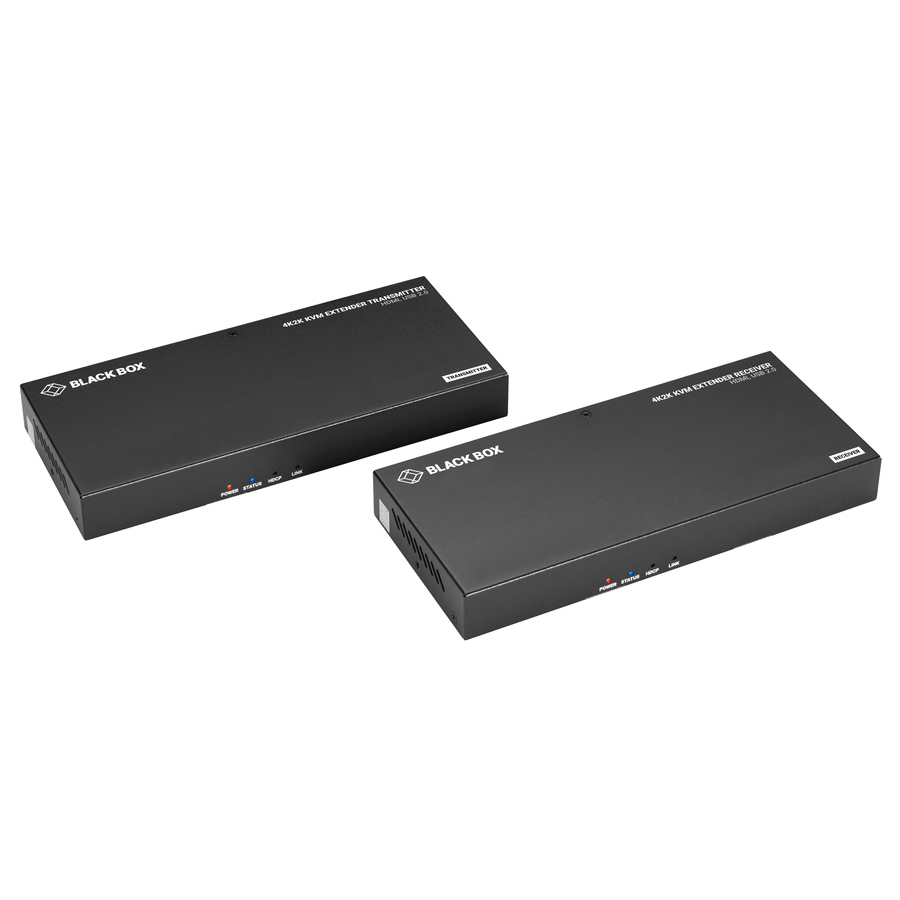

Use the KVM Extenders to send high-resolution 4K@60Hz (4:2:0 8-bit) video as well as signals for USB keyboards, mice, and other human interface devices (HID), and power and control signals. The extender includes a local unit that attaches to the CPU and a remote unit that connects the user's KVM console. But you can also plug in a monitor on the local side - which is great for monitoring and administration right at the computer. Requires only one power supply.
- HDMI 1.4 Compliance
- Four USB Type-A inputs for keyboard, mouse, or additional peripherals
- An analog audio pass through from Transmitter to Receiver
- Locking power supply prevents the power from being accidentally disconnected
- With integrated 48V PoC, only one power supply is needed to power both units
- Transmit video, analog stereo, power, RS-232 and USB 2.0 signals
- Extend uncompressed 4Kx2K@60Hz and 1080p@60Hz up to 100 meters over CAT6, CAT6A cables and up to 90 meters over CAT5 cable
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| GPU / Graphics | |
|---|---|
| Graphic Mode | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 5 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Number of Local Users Supported | 1 |
| General Features | |
|---|---|
| Maximum Operating Distance | 328.08 ft |
| Manufacturer | Black Box Corporation |
| Product Condition | New |
| Device Type | KVM Extender |
| Number of Computers Supported | 1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
Black Box KVM Extender - 4K@60Hz, HDMI 1.4, USB 2.0, CAT5e/6/6A - 1 Computer(s) - 1 Local User(s) - 328.08 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 5 x USB - 2 x HDMI
