Two different power inputs at the terminal block prevent the power interruptions. When the primary DC power input fails, the backup power input takes over to guarantee non-stop operation.
- Dual 12-57-VDC DC power inputs for redundant power. Generates 50 VDC PSE power output per port.
- Rated for extreme temperatures of -40 to +75° C. IP30 enclosure for use in harsh INDOOR OR OUTDOOR environments.
- Eliminates worries about powering distant equipment where no power is available.
- Use in industrial networks, such as oil/gas fields, utilities, security/surveillance, SCADA/M2M, and building automation.
- Power over Ethernet 802.3at compliant. Provides up to 30 watts per port with a total power budget of 60 Watts at 12-24 VDC and 120 Watts at 24-57 VDC.
- Provides eight PoE+ PSE 10/100/1000-Mbps RJ-45 ports.
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-TX |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 8 |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail Mountable |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Black Box Corporation |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |

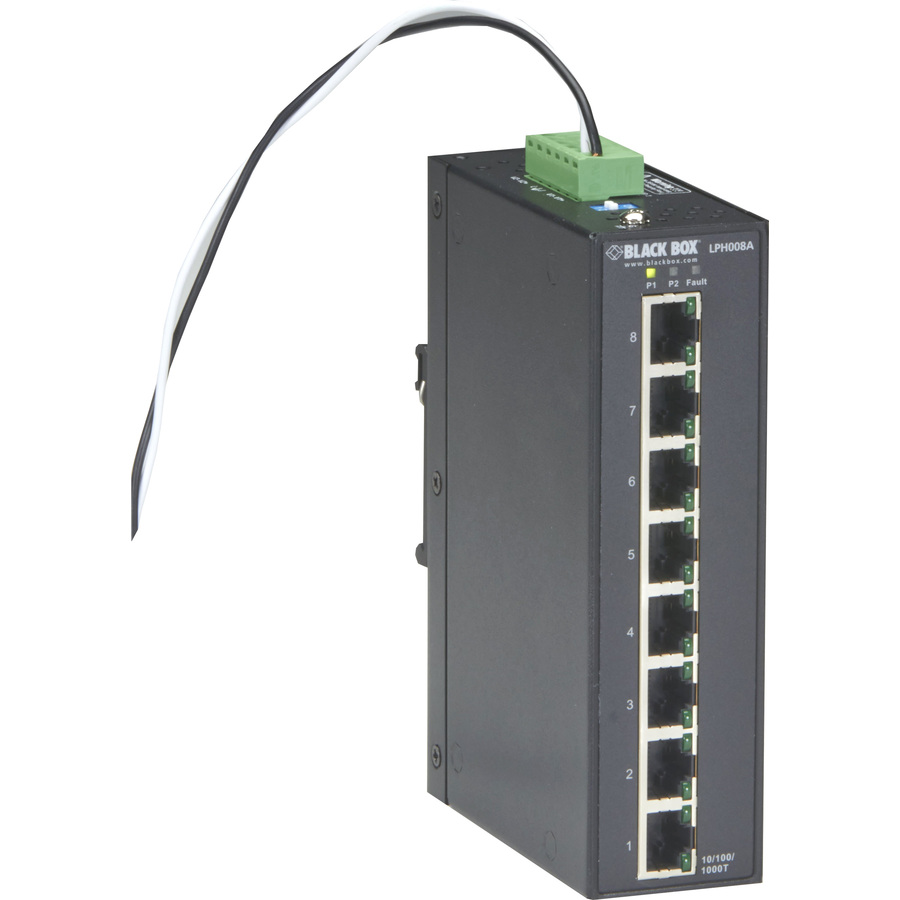

Black Box Industrial Unmanaged Gigabit PoE+ Switch - 8-Port - 8 Ports - Gigabit Ethernet - 10/100/1000Base-TX - 2 Layer Supported - Twisted Pair - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty - TAA Compliant
