OVERVIEW
INDUSTRIAL MANAGED AND UNMANAGED GIGABIT ETHERNET SWITCHES DATA SHEET
INTRODUCTION

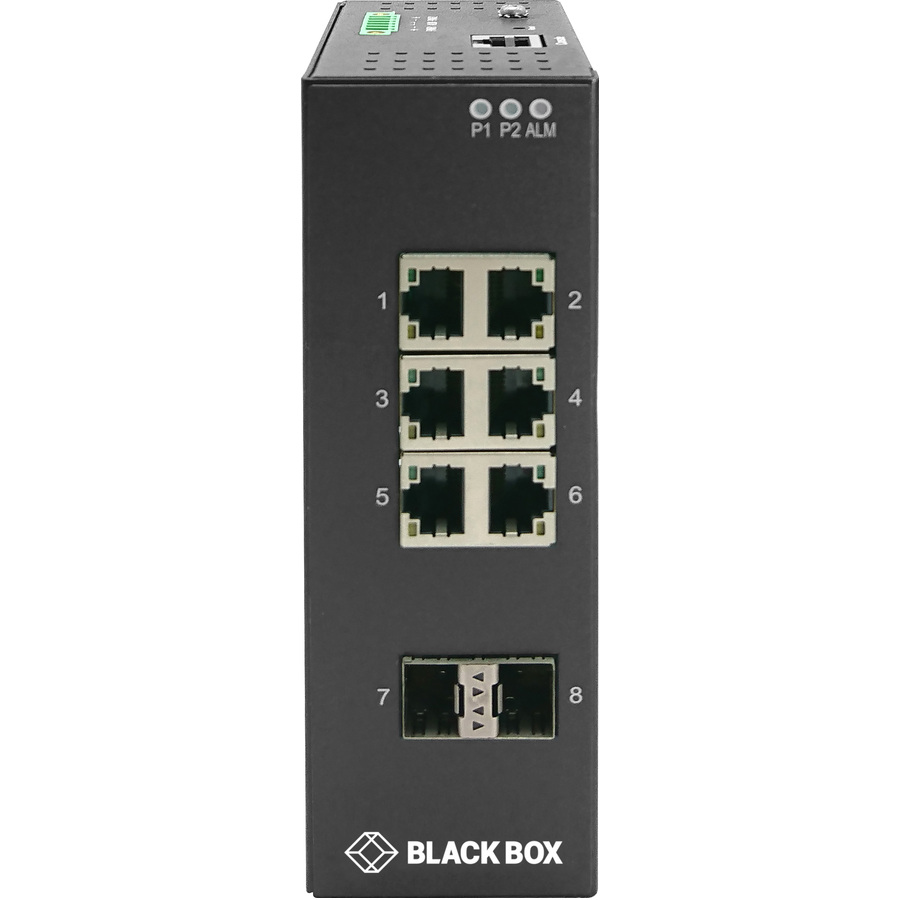

The Industrial Managed and Unmanaged Gigabit Ethernet Switches include unmanaged switches that provide four (4) copper RJ-45 or RJ-45 PoE ports and one (1) multi-rate SFP slot and managed switches that provide six (6) or eight (8) copper RJ-45 or RJ-45 PoE ports and two (2) or four (4) multi-rate SFP slots.
Power over Ethernet
The LIE401A, LIE1014A, LIE1080A and LIE1082A switches support Power over Ethernet compliant to the IEEE 802.3af and IEEE 802.3at standard on all copper ports. These switches can be used to power standard PoE PD devices with up to 30 watts per port along with the Ethernet data on standard Ethernet Cabling.
Multi-rate SFP slots
The benefit of having multi-rate SFP slots is to be able to use 100-Mbps and 1-Gbps SFP Modules for either multi- or single-mode in a mix and match as needed. If requirements change, just replace the SFP module and protect your switch investment.
Power
The switches are powered from 12- to 58-VDC. The PoE models need 48 VDC for 802.3af and a minimum of 53 VDC for 802.3at.
Extended temperature range
All models are tested and released for operating temperatures from -40° up to +75° Celsius.
Management
The switches offer powerful features including Layer 2 routing and management with all advanced filter and multicast algorithms needed today to easily prioritize, partition, and organize a reliable high-speed network.
- DIN RAIL OR WALLMOUNT
- MANAGE THROUGH A WEB INTERFACE, SNMP OR COMMAND-LINE INTERFACE (CLI)
- IP-RATED HOUSING IS ALSO RATED FOR SHOCK AND VIBRATION PROTECTION
- DUAL DC POWER INPUTS FOR REDUNDANCY
- RATED FOR EXTREME TEMPERATURES OF -40° TO +75°C
- MANAGED SWITCH SUPPORTS LACP, SPANNING TREE AND RING FAIL-OVER FOR REDUNDANCY AND RESILIENCY
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Input Voltage | 58 V DC |
| Power Source | DC |
| Power Consumption | 10.50 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 6 |
| PoE (RJ-45) Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail Mountable |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | Black Box Corporation |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x SFP Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | Industrial Managed Gigabit Ethernet Switch |
