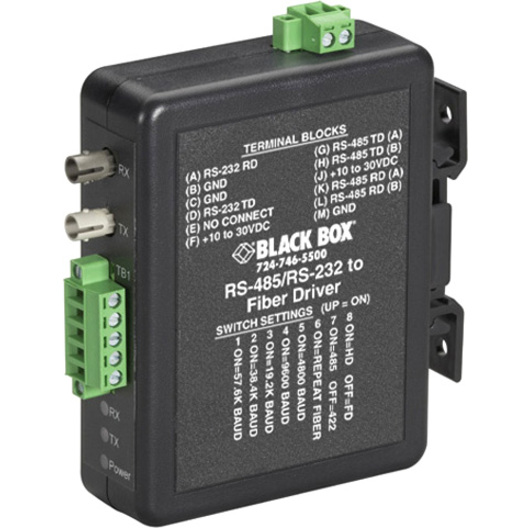

Black Box Industrial DIN Rail RS-232/RS-422/RS-485 to Fiber Driver

$ 436.49 $ 436.49
$ 436.49

$ 436.49 / Units
  • Brand
  • Depth
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Digital Audio/Video
  • Digital Audio
  • USB
  • Network (RJ-45)
  • DVI
  • Fiber Mode Supported
  • Management Port
  • Total Number of Ports
  • Number of Serial Ports
  • Parallel Port
  • ST Port Type
  • Number of ST Ports
  • Form Factor
  • Media Type Supported
  • Input Voltage
  • Maximum Distance Supported
  • TAA Compliant
  • Certifications & Standards
  • Country of Origin
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

  • RS-232 signals are supported up to 115.2 kbps; RS422 or RS-485 signals are supported up to 460.8 kbps.
  • Fiber optic cabling makes it immune to EMI/RFI and transient surges. It's ideal for data communications near heavy electrical equipment and other electrical or radio interference!
  • Replaces converters and isolators when you connect remote equipment.
  • Modbus ASCII or RTU compatible.
  • Automatic Send Data Control eliminates the need for driver software.
  • Removable terminal blocks.
  • Conveniently mounts on an optional DIN Rail.
    • Enables any two async serial devices to communicate half- or full-duplex over two multimode ST fibers at distances up to 2.5 miles (4 km).
    • Great for use in harsh environments. Operates from -40° to +185° F (-40° to +85° C).
    • Three-way isolation, 2000-V input/output.
    • Indicator LEDS monitor signal and power.
    • UL approved.
    • Data-derived or RTS transmit/receive switching (RS-485).
    • Extended ambient operating range -40 to +176° F (-40 to +80° C).
    • Ideal for fiber applications that use different interface protocols.
    • Communicate signals in a point-to-point or ring topology.
    Brand
    Brand Black Box Corporation
    Power & Battery
    Input Voltage 12 V DC
    USB Ports
    USB No
    Ethernet Port
    Network (RJ-45) No
    Audio
    Digital Audio No
    Size / Dimensions
    Form Factor Rail-mountable
    General Features
    Digital Audio/Video No
    Maximum Distance Supported 4.02 km
    Manufacturer Black Box Corporation
    Video Ports
    DVI No
    Misc Ports
    Management Port No
    Total Number of Ports 3
    Number of Serial Ports 2
    Parallel Port No
    ST Port Type Duplex
    Number of ST Ports 1
    Printer/Scanner/Fax Specs
    Media Type Supported Optical Fiber
    Cables
    Fiber Mode Supported Multi-mode
    Compliance & Certification
    TAA Compliant Yes
