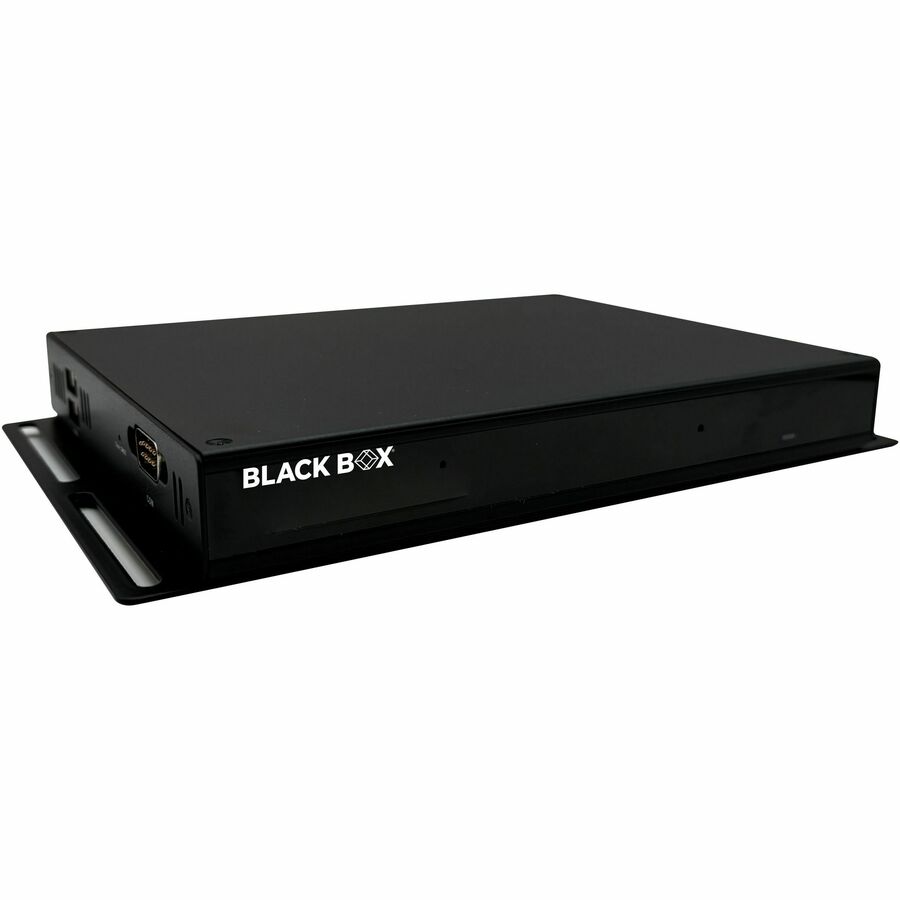

15-zone 4K media player. Works with Black Box Digital Signage CMS. High-end digital signage content delivery, incl. 4K video walls. Wired/Wi-Fi.
The iCompel® 4K media player supports up to 15 zones for text, images, and HTML. It works with Black Box iCompel Content Commander and is ideal for high-end digital signage content delivery, including 4K video walls. Wired or Wi-Fi® options.
Easy to set up and install
Simply connect the iCompel unit to a network and to a display. After booting up, the iCompel unit automatically obtains an IP address from the network. Can set fixed IP addresses. Create attention-getting digital signage without a lot of creative or technical know-how. iCompel won't cause IT and security headaches when added to your network.
Manage content online content
Install an iCompel P Series Subscriber on your network and manage it via a Web browser. One iCompel Content Commander can send media over the network to an iCompel Subscriber - anywhere in the world.
Scalable
To scale from a standalone installation to a multichannel network with many screens, add an iCompel Content Commander to manage and distribute content and repurpose the standalone players to the subscriber role.
Drag-and-drop editing
Drag-and-drop media from your computer desktop or a folder to the iCompel media folders on the iCompel Content Commander or a player running in the standalone role appliance's hard disk or use its intuitive interface to browse for files.
Multiple content channels
The subscribers pull content from an iCompel Content Commander, following a preset schedule. Deliver a high-impact display at the right time in the right place, using stored media, such as ads, or Web media via XML and RSS feeds.
Security
A built-in firewall limits access to authorized users only - no need to install any third-party software or virus protection. iCompel uses HTTP and HTTPS security protocols and supports the LDAP authentication protocol and VPN capabilities for secure remote access.
Straightforward layouts
ICompel Content Commander software enables you to set up screen layouts containing multiple zones for display.
- Supports 1 zone for 4K video; 2 zones for other video content; unlimited zones for HTML5, images, text, and audio (within reason)
- Choose wired or Wi-Fi®
- HDMI and DisplayPort video outputs, (4) USB 2.0, (2) USB 3.2, (1) RS-232 serial port, 3.5-mm stereo mini-jack, and HDMI audio ports
- Handles resolutions up to UHD 3840 x 2160 at 60p
- Slim profile for back-of-screen mounting
- HD stream-in, dual band Wi-Fi and touch options
- Active cooling (Fanned)
- 4-GB RAM and a 512-GB solid-state drive (SSD)
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| CPU / Processor | |
|---|---|
| Processor Core | Quad-core (4 Core) |
| Memory / RAM | |
|---|---|
| Standard Memory | 4 GB |
| Storage | |
|---|---|
| Solid State Drive Capacity | 512 GB |
| Screen / Display | |
|---|---|
| Video Wall Compatible | Yes |
| Power & Battery | |
|---|---|
| Input Voltage | 19 V DC |
| Networking & Connectivity | |
|---|---|
| Ethernet | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB 2.0 Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| General Features | |
|---|---|
| Manufacturer | Black Box Corporation |
| Misc Ports | |
|---|---|
| Serial | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Scan Format | 2160p |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Operating Temperature | 32°F (0°C) |
