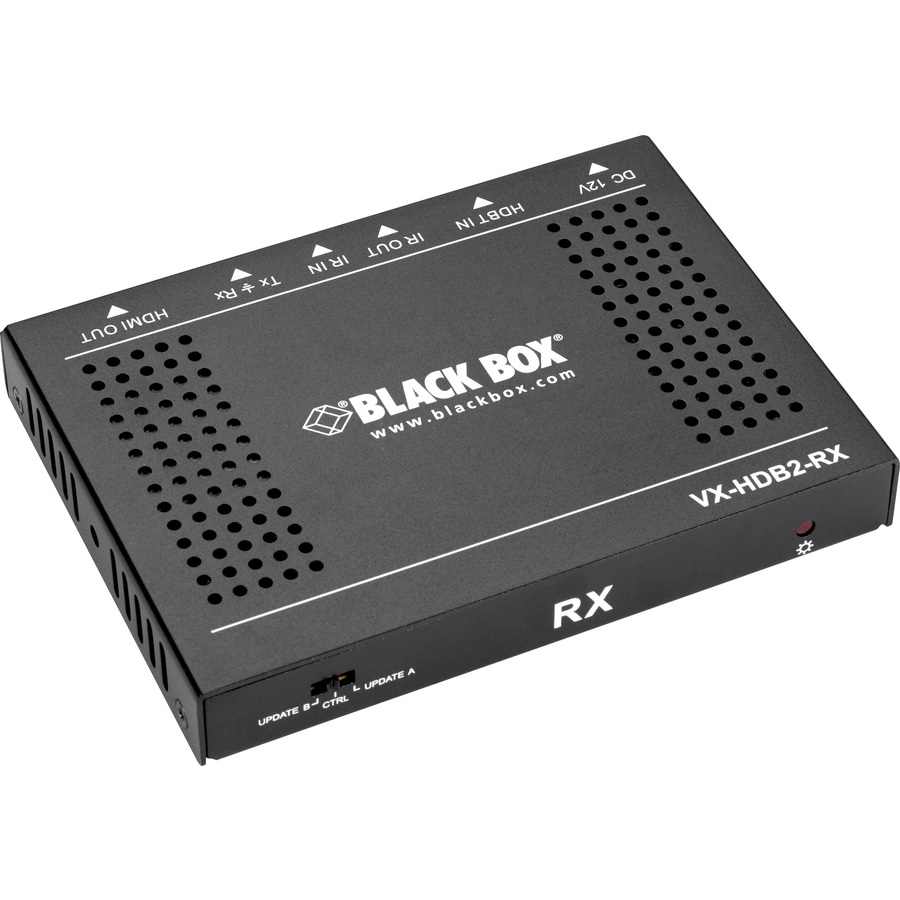

The HDMI 2.0 4K 60Hz 4:4:4 HDR CATx Video Extender, PoC IR, RS-232 consists of a transmitter and a receiver. It extends an 1080p/4K HDMI signal over CAT5e/CAT6a cable up to 229 feet (70 meters) or 131 feet (40 meters) using PoC. It also enables IR and RS-232 passthrough to control a source or display device remotely. The extender uses visually lossless video compression technology (VLC) to ensure the HD lossless transmission of HDR and 4K @ 60 Hz/4:4:4 over CAT5e/CAT6a cable.
- Includes a DIP switch for Control, Update A, and Update B
- Supports HDR
- Includes bi-directional PoC for simplied wiring
- Uses CEC, IR, and RS-232 passthrough for long-distance control
- Maximum transmission distance is up to 131 feet (40 meters) for 4K x 2K and up to 229 feet (70 meters) for 1080p
- Supports 4K/UHD/60 Hz/4:4:4
- Supports HDMI 2.0 and HDCP 2.2 and is backwards-compatible to the previous versions
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| Number of HDMI Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Receiver Width | 7" |
| Receiver Weight (Approximate) | 5.39 oz |
| Receiver Height | 5" |
| Receiver Depth | 7" |
| Transmitter Depth | 7" |
| Transmitter Height | 5" |
| Transmitter Width | 7" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 229 ft |
| Manufacturer | Black Box Corporation |
| Product Condition | New |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6a |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
