Send higher-quality video and audio signals further with this HDMI 2.0 Extender. This extender kit distributes UHD video, audio, RS232 or IR up to 1000 feet (300 meters) over fiber optic cable. The bi-directional RS-232 or IR ports to control AV devices are easy to choose by the slide switch on the rear panels. Control sources and displays from either the transmitter or receiver end using either RS232 or IR signals. The extender supports duplex fiber up to 1000 feet (300 meters).
Extend signals over duplex fiber up to 1000 feet (300 meters) while maintaining:
- Higher resolutions
- Higher frame rates
- Multiple full HD streams in the same pipe
- 21:9 aspect ratio
- Bi-directional IR or RS232 passthrough to allow different types of displays or sources
- Video transmission is uncompressed when data rate 3 Gbps or lower (eg 4K @ 30 Hz 4:4:4)
- Video transmission is compressed when the data rate is above 3 Gbpss
- Supports HDR
- Transmits 4K @ 60 4:4:4 signals up to 1000 ft via multimode OM3 cable with 10 Gbps multimode SFP+ modules (SFP+ modules are included)
- Locking HDMI ports
- HDCP 22 compliant
- Supports up to 4K @ 60 4:4:4 8 bit HDMI signal transmission
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 10.56 oz |
| Receiver Width | 5.25" |
| Receiver Weight (Approximate) | 10.56 oz |
| Receiver Height | 3.50" |
| Receiver Depth | 8.25" |
| Transmitter Depth | 8.25" |
| Transmitter Weight (Approximate) | 10.56 oz |
| Transmitter Height | 3.50" |
| Transmitter Width | 5.25" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 1000 ft |
| Manufacturer | Black Box Corporation |
| Product Condition | New |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |

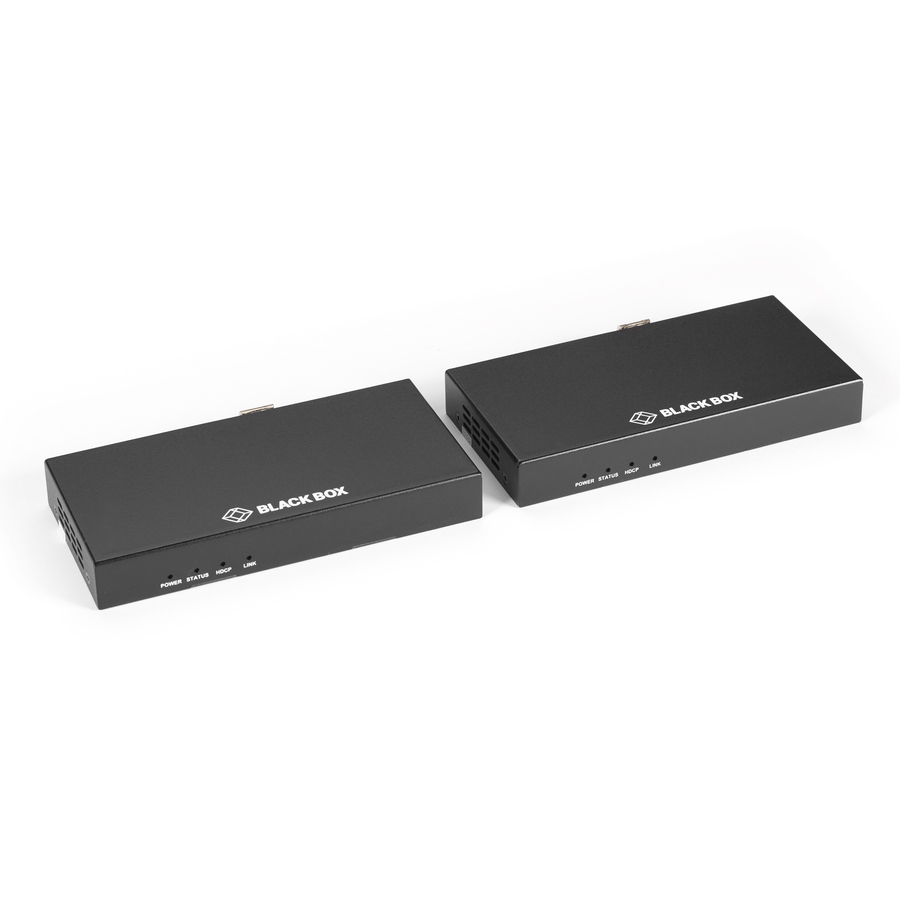

Black Box HDMI 2.0 Extender over Fiber - 1 Input Device - 1 Output Device - 1000 ft Range - 1 x HDMI In - 1 x HDMI Out - 4K - Optical Fiber
