Ensure your 4K content is always on display on the right screens. The HDMI 2.0 Splitter supports HDMI 2.0 with resolutions up to 4K @ 60 Hz 4:4:4 8-bit and is HDCP 2.2 compliant. This device also supports EDID and HDCP management, which authenticates HDCP encryption between all devices, ensuring the HDMI source reliably outputs the correct content to the displays.
With increased bandwidth up to 18 Gbps, you can split video signals to four displays while maintaining:
- Higher resolutions
- Higher frame rates
- Multiple full HD streams in the same pipe
- 21:9 aspect ratio
- CE, FCC, IC, RCM and VCCI approvals
- Locking HDMI connectors keep your cables securely attached
- Easy EDID management allows for best video and audio quality
- Multi-channel PCM, Dolby TrueHD and DTS HD audio supported up to 7.1 ch
- Supports HDMI 2.0 with resolutions up to 4K @ 60 Hz 4:4:4 8-bit and HDCP 2.3
- Distributes one HDMI source to four HDMI displays
- Slim profile, space saving and easy-to-install
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 4 |
| Number of HDMI Inputs | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| General Features | |
|---|---|
| Manufacturer | Black Box Corporation |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |

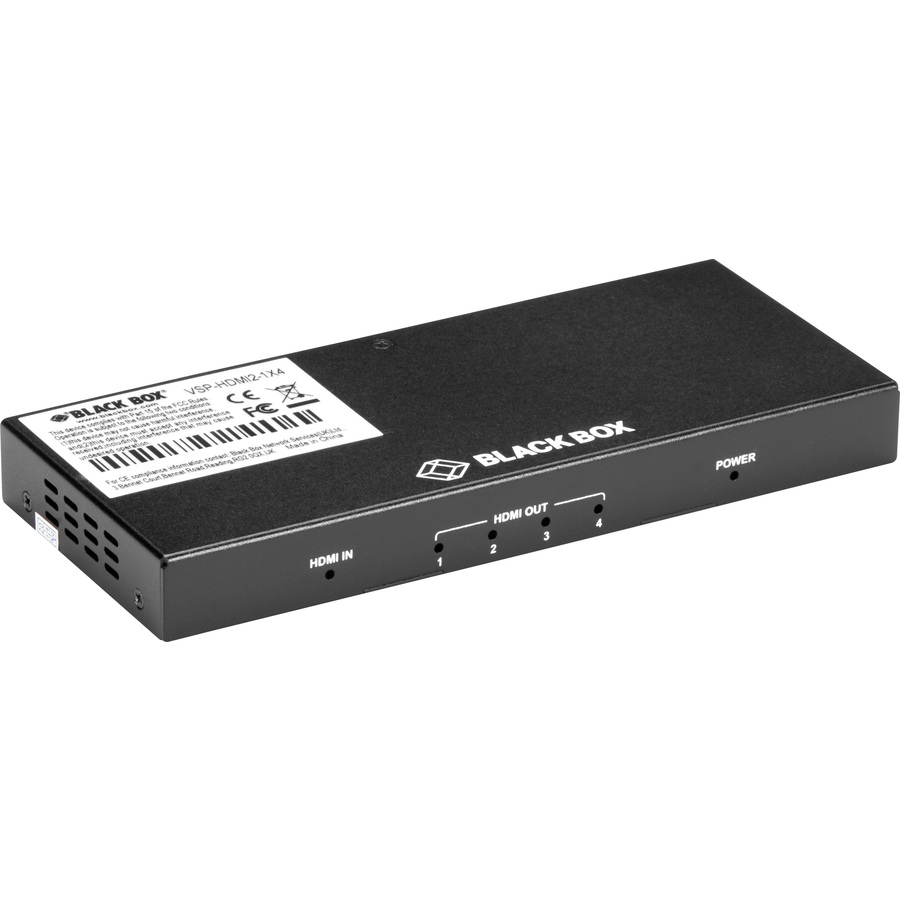

Black Box HDMI 2.0 4K60 Splitter - 1x4 - 4096 x 2160 - 1 x HDMI In - 4 x HDMI Out - Serial Port - Metal - TAA Compliant
