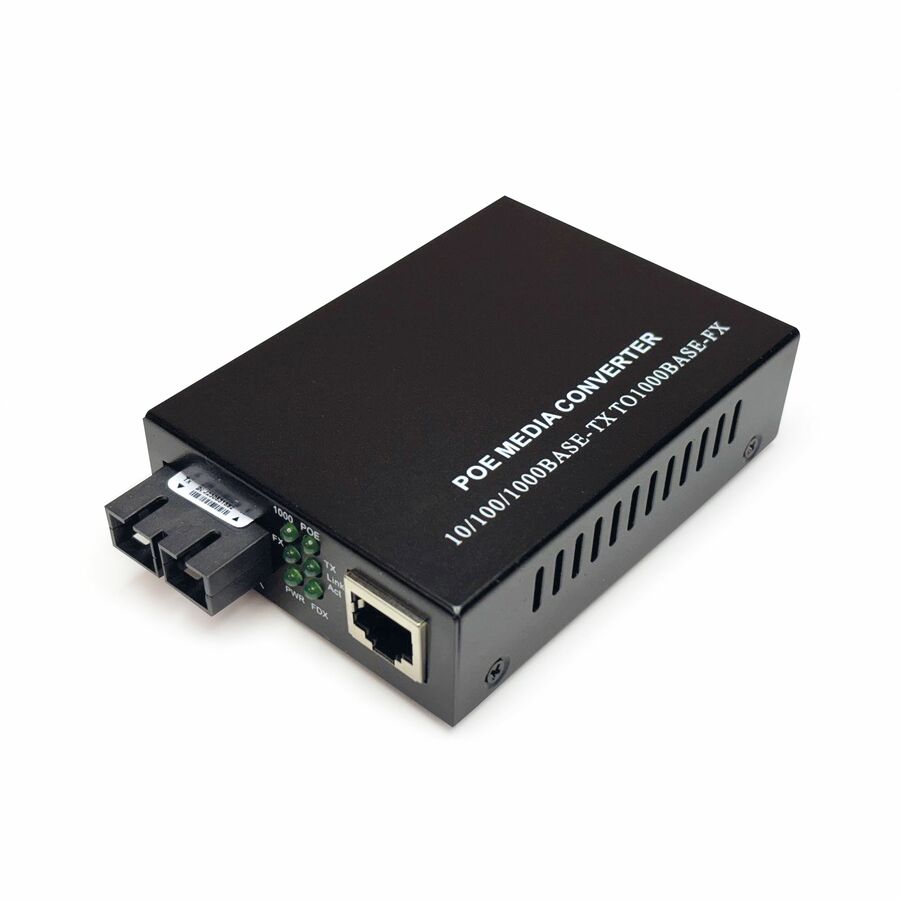

Use the PoE PSE Media Converter 10/100/1000BASE-T to 1000BASE-SX/LX to connect two types of network segments easily and inexpensively. It features a UTP RJ-45 port and a fiber port. Depending on the model, the fiber port can be an SFP slot, or a singlemode or multimode duplex fiber SC connector. The SFP model is customizable using swappable SFPs for singlemode or multimode applications.
The media converter automatically detects 10-/100-/1000-Mbps bandwidth on the copper side and supplies power to PoE+ powered devices. The converter includes an AC power supply to power the unit.
- Connects 10/100/1000BASE-T to 1000BASE-SX/LX network segments easily and inexpensively
- Includes an UTP RJ-45 port and an SFP slot or SM/MM SC connector
- SFP model supports swappable SM or MM modules
- Automatically senses 10/100/1000-Mbps bandwidth
- Supplies power to PoE+ powered devices (PDs)
- Includes an AC power supply
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Power Source | AC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-SX/LX |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| General Features | |
|---|---|
| Maximum Distance Supported | 2 km |
| Manufacturer | Black Box Corporation |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
