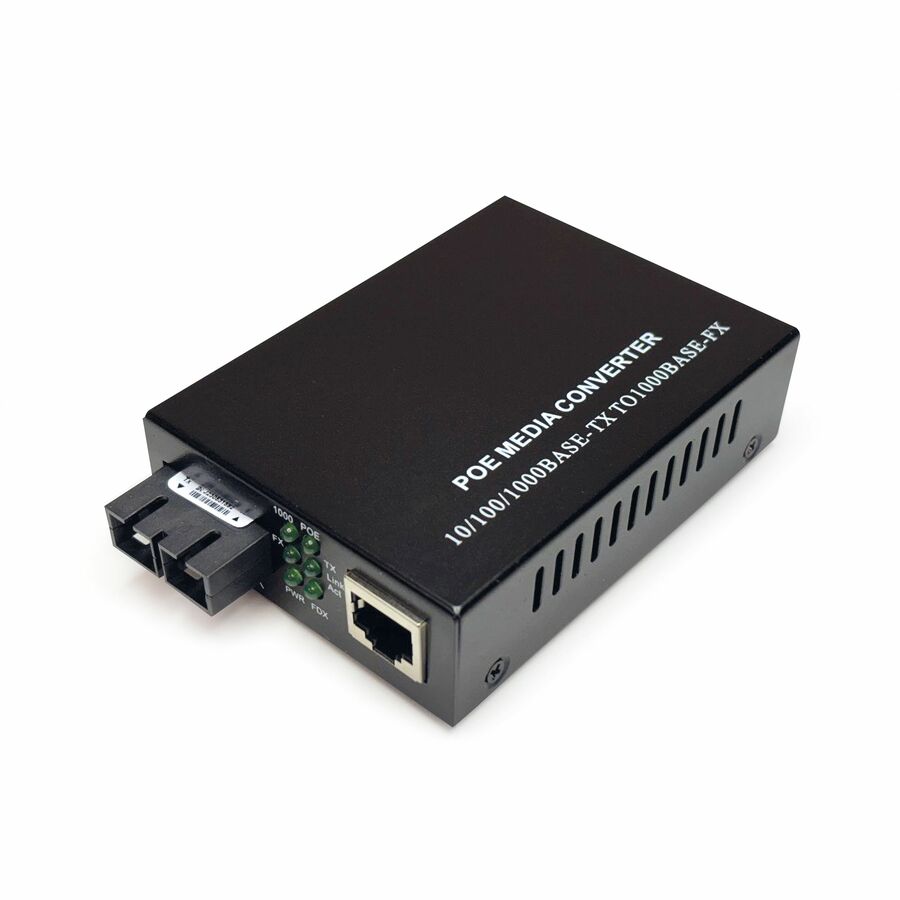

Use the PoE+ PSE Media Converter, 10/100/1000BASE-T to 1000BASE-SX/LX to connect two types of network segments easily and inexpensively. These Media Converters feature a UTP RJ-45 port and a fiber port. Depending on the model, the fiber port will be either a duplex Multi-mode SC, or duplex Single-mode SC connection. The copper port on these Media Converters will auto sense 10/100/1000 Mbps and supply power to PoE+ Powered Devices (PD). Also included will be an AC power supply to power the unit.
- IEEE802.3AT POE+ STANDARD
- IEEE802.1Q
- IEEE802.3Z 1000BASE-TX/FX STANDARD
- PoE PSE COMPATIBLE
- SUPPORTS FLOW CONTROL FOR FULL AND HALF DUPLEX OPERATION
- BANDWIDTH CONTROL
- FCC CLASS A, CE
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Power Source | AC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-SX/LX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of PoE+ (RJ-45) Ports | 1 |
| PoE Port Type | PD |
| General Features | |
|---|---|
| Maximum Distance Supported | 0.55 km |
| Manufacturer | Black Box Corporation |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 3 |
| SC Port Type | Duplex |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
Black Box Gigabit Ethernet (1000-Mbps) PoE+ Media Converter - 10/100/1000-Mbps Copper to 1000-Mbps Fiber - 1 x Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC Ports - DuplexSC Port - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX/LX - 0.55 km - 1 x Expansion Slots - 1 x SFP Slots - AC - TAA Compliant
