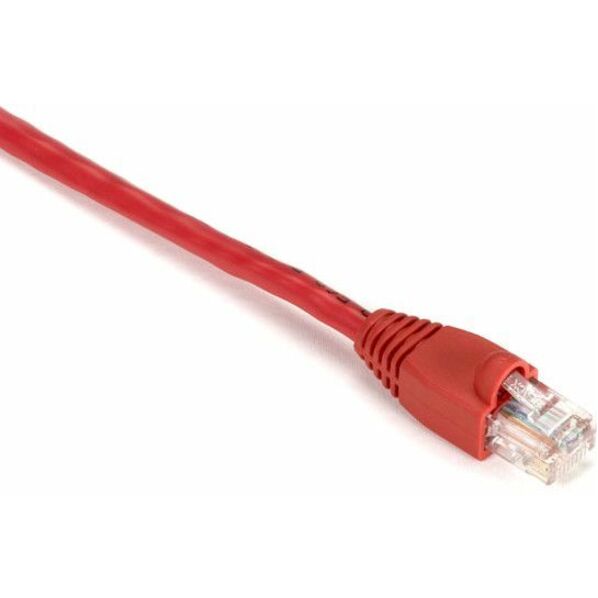

Black Box GigaBase Premium CAT5e patch cables are constructed to exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Fast Ethernet applications and guaranteeing the transmission of your voice, data, audio/video and/or PoE signals. Tested to 350-MHz and 1-Gbps performance, these cables exceed the 100-MHz CAT5e spec, greatly reducing impedance, structural return loss, and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.
These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation. Available in a variety of lengths and colors, Black Box's GigaBase line of cabling gives you the flexibility to build your install however you want.
- Constructed to exceed industry standards
- Tested to 350 MHz, surpassing 100-MHz CAT5e standard
- Cabling is component level verified to ANSI/TIA-568-C2
- 50-micron gold-plated contacts provide superior conductivity
- Connector designed for an insertion and extraction life of 750 cycles
- Offers superior near-end crosstalk (NEXT) compared to standard CAT5e cable
- Snagless boots prevent connector damage due to snags during installation
- The cable is ideal for 1000BASE-T, 100BASE-TX, 10-BASE-T, and other high-speed applications
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Audio | |
|---|---|
| Impedance | 100 Ohm |
| Appearance | |
|---|---|
| Boot Type | Snagless |
| General Features | |
|---|---|
| Data Transfer Rate | 1 Gbit/s |
| Manufacturer | Black Box Corporation |
| Cables | |
|---|---|
| Cable Shielding Type | Unshielded Twisted Pair (UTP) |
| Cable Length | 14.11 ft |
| Cable Type | Category 5e |
| Cable Characteristic | Patch Cable |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Contact Plating | Gold |
| Connector Plating | Gold |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Type | CM |
| Shielding | No |
| American Wire Gauge | 24 AWG |
| Number of Pairs | 4 |
| Number of Conductors | 8 |
