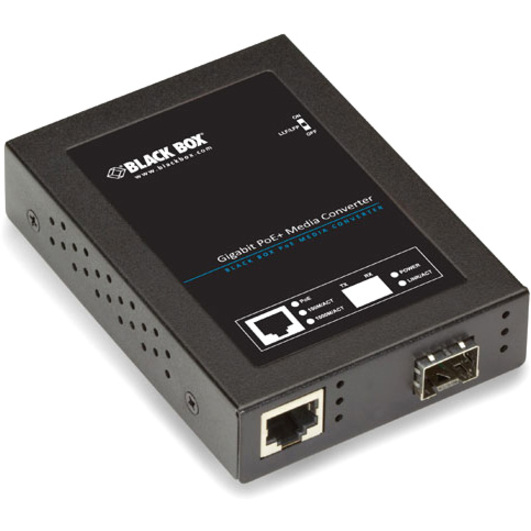

Transparently connect fiber to copper to power PoE+ devices at the edge of your network. Use the Converter to connect PoE+ devices such as PTZ (pan, tilt, zoom) cameras, 802.11n access points, VoIP phones, and more that require up to 30 watts of power. The Converter acts as a Power Sourcing Equipment (PSE) to push data and power over copper cable to the remote, Powered Devices (PDs). The Media Converter features one autosensing 10/100/1000-BASE-T UTP port plus an SFP port that can be used for multimode and single-mode 1000BASE-X fiber connections. It is powered via an external AC adapter, which delivers 47~57 input power voltage. The Converter features advanced functions such as auto-negotiation, Auto-MDIX, Link Lost Forwarding, and Link Fault Pass-Through for easy system management and troubleshooting. LEDs indicate Converter activity.
This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
- Smart, plug-and-play installation
- Copper port supports full-duplex, auto-MDI/MDI-X, and auto-negotiation
- Compatible with 802.3af/at standard PoE devices
- Link Loss Forwarding provides instant notification of fiber segment link problems
- Power sourcing equipment (PSE) on the copper side to provide up to 30 watts of power
- Provides one 10-/100-/1000-Mbps copper port and one 1000Mbps SFP port
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-SX/LX |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | External |
| General Features | |
|---|---|
| Manufacturer | Black Box Corporation |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Video Ports | |
|---|---|
| DVI | No |
| Misc Ports | |
|---|---|
| Management Port | No |
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
