- Easy to install.
- Connects T1 or E1 PBXs, CSUs, or routers over fiber to protect against noise and increase network reliability.
- Supports AMI, B8ZS, and HDB3 line codes.
- A crossover switch on the RJ-45/RJ-48 port enables easy equipment connections.
- Extensive diagnostics, including local and remote fiber loopback switches.
- LEDs display T1/E1 link status, modes of operation, and line segment errors.
- To conveniently rackmount up to five FlexPoint Fiber Converters, use the optional 5-Position Rackmounting Kit (LMC205). To order, see "Related Products".
- Use optional Wallmounting Hardware (LMC206-WALL) to mount individual FlexPoint Fiber Converters on virtually any surface (also available under "Related Products".)

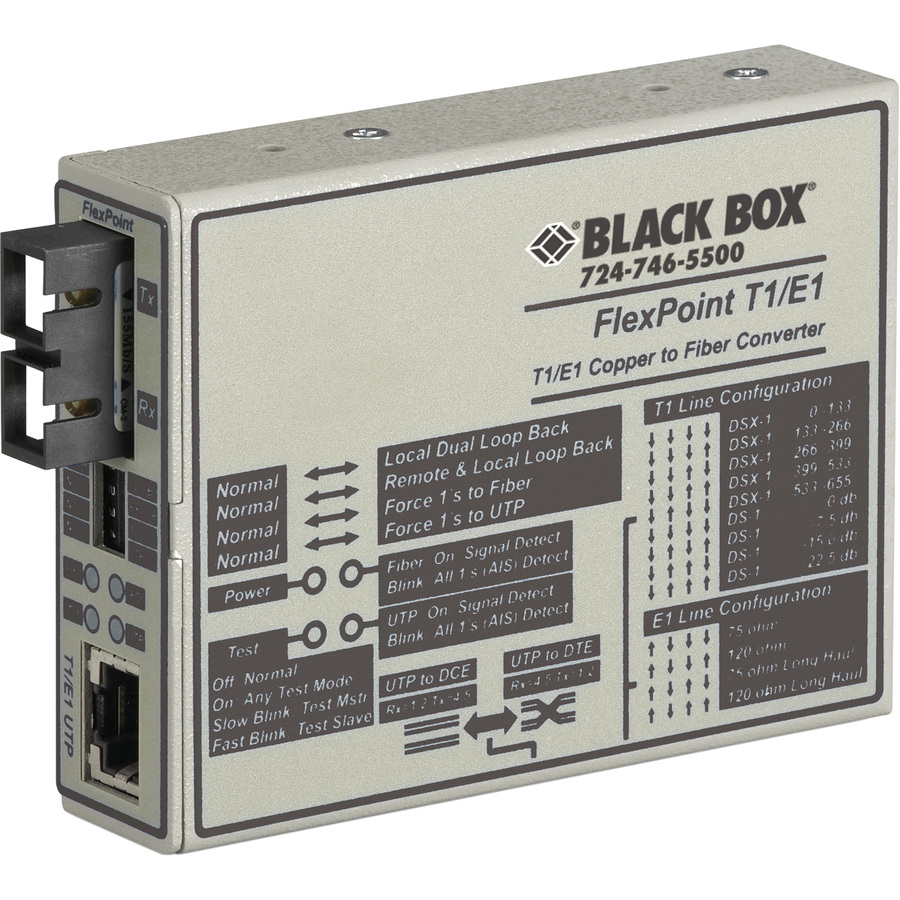

Use this flexible converter/line driver to connect your T1 or E1 devices to multimode fiber to get extra distance, as well as protection from environmental noise.
FlexPoint™ Converters from Black Box are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN.
The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.
Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC power supplies.
- Powered by a universal AC power supply or the optional rackmountable chassis.
- Supports AMI, B8ZS, and HDB3 line codes.
- A crossover switch on the RJ-45/RJ-48 port enables easy equipment connections.
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Number of RJ-48 Ports | 1 |
| Network Technology | T1/E1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Maximum Distance Supported | 5 km |
| Manufacturer | Black Box Corporation |
| Product Condition | New |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm , 62.5/125 µm , 100/140 µm |
| Fiber Optic Cable Core/Claddi | 50/125 µm |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
