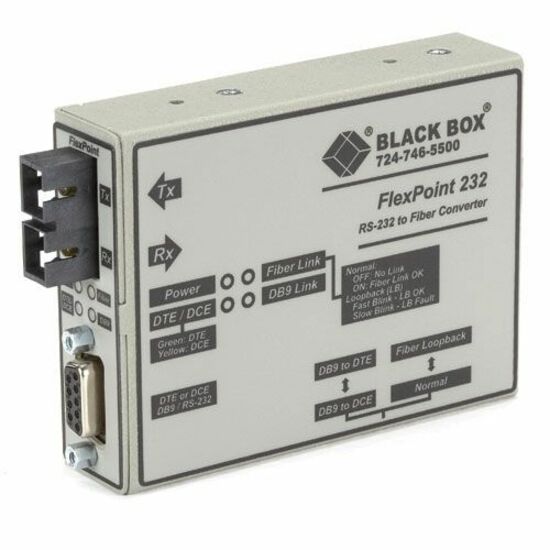

This multimode fiber extender drives data up to 1.5 mi. (2.5 km). The extender autosenses speeds up to 115.2 kbps and works as a standalone or a hot-swappable chassis-based extender.
The extender is easy to install and includes a DC power supply. Or, you can power multiple units with the space-saving 19" rackmountable FlexPoint Power Chassis.
Featuring DTE/DCE configuration for easy connections to DTE or DCE devices using straight-through cabling, the extender supports half- and full-duplex operation.
The extender also has remote loop capability for remote fiber testing and LEDs for status monitoring.
- Full duplex operation over MM fiber
- Data rate up to 115.2 kbps
- Range of up to 2.5 km (1.5miles) at 115.2 kbps over MM fiber
- DCE/DTE switch for easy direct connection no special cables needed.
- Remote loop capability for remote fiber testing and LEDs for status monitoring.
- Works as serial RS-232 fiber converter and extender.
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Power Source | DC |
| Size / Dimensions | |
|---|---|
| Form Factor | Standalone |
| General Features | |
|---|---|
| Maximum Distance Supported | 2.50 km |
| Manufacturer | Black Box Corporation |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Number of SC Ports | 2 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
