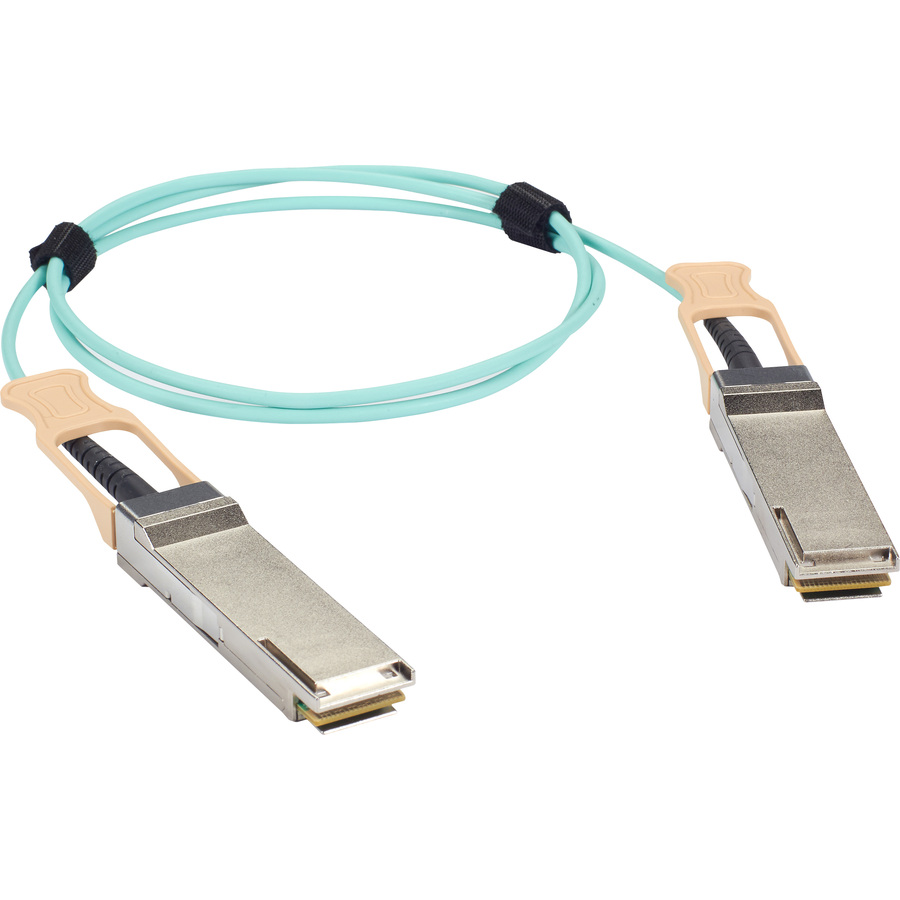

Cisco Compatible Active Optical Cable (AOC) Connects Network Equipment at Speeds up to 100 Gbps
Black Box QSFP28 Active Optical Cables provide premium, error-free performance for data, storage, and high-performance computing (HPC) interconnectivity. 100% compatible with Cisco QSFP-100G-AOC3M= and other lengths, you can rest assured when making connections amongst your Cisco switches, routers, and servers. Constructed for full compliance with the QSFP28 Multi-Source Agreement (MSA), SFF-8636, and SFF-8665 industry standards, you can also make connections amongst your non-Cisco, non-proprietary 100Gb networking equipment. Programmed, tested, and serialized to ensure compliance and functionality, Black Box Active Optical Cables are the ideal solution for 100Gb Ethernet, Infiniband (4xEDR, 4xFDR, 4xQDR), 4G/8G/16G/32G Fiber Channel applications, and more.
Design, Performance, and Savings
The ultra-thin and light construction is ideal for high-density racks, placing less strain on ports and improving airflow to help cool equipment. AOCs utilize optical technology for higher bandwidth and reliable, ultra-fast data transmission over longer distances, far exceeding the 5-meter limitation where copper DAC solutions begin to fail with excessive bit error rates.
Integration and Low Latency
These cables offer a convenient, all-in-one, hot-swappable design, eliminating the need for separate transceivers and cables. Integrating the optics minimizes connection points, resulting in significantly lower latency - crucial for maintaining data integrity.
Interference Resistance and Security
The fiber optic construction provides a minimal EMI/RFI profile, ensuring superior resistance to signal interference. This is paramount for maintaining data integrity in sensitive, ultra-high-density applications. Fiber optic transmission is inherently resistant to tapping, adding a layer of physical security to your data.
- Ideal for 100Gb Ethernet, Infiniband (4xEDR, 4xFDR, 4xQDR), 4G/8G/16G/32G Fiber Channel applications
- Perfect for point-to-point, intra-rack, and rack-to-rack connections of 100Gb equipment
- Low power usage (less than 25W)
- Ultra-thin and light optical cabling ideal for HD applications
- 100GBase-AOC 100Gbps Direct Attach Cable
- Utilizes VCSEL technology over 850nm multimode fiber
- QSFP28 Multi-Source Agreement (MSA), SFF-8636, and SFF-8665 compliant
- 100% Compatible to Cisco QSFP-100G-AOC3M= and other lengths
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| General Features | |
|---|---|
| Data Transfer Rate | 100 Gbit/s |
| Manufacturer | Black Box Corporation |
| Cables | |
|---|---|
| Cable Length | 49.20 ft |
| Cable Type | Fiber Optic |
| Fiber Optic Mode | Multi-mode |
| Connector Type on First End | QSFP28 Network - Male |
| Connector on First End Details | 1 x QSFP28 Network - Male |
| Connector Type on Second End | QSFP28 Network - Male |
| Jacket Type | LSZH |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
