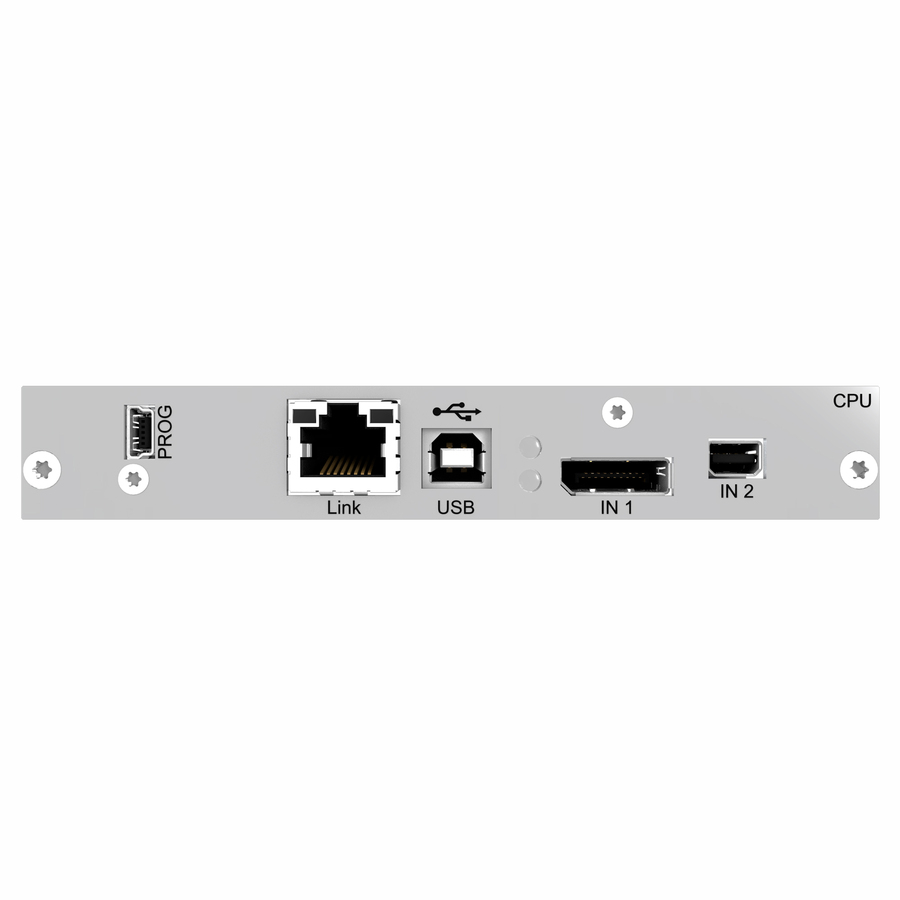

Black Box DKM FX KVM Extender Transmitter

$ 1,790.49 $ 1,790.49
$ 1,790.49

$ 1,790.49 / Units
  • Brand
  • Transmitter Weight (Approxima
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Additional Warranty Informati
  • Platform Supported
  • Connectivity Technology
  • USB
  • Number of USB Ports
  • DisplayPort
  • Network (RJ-45)
  • Number of Network (RJ-45) Ports
  • Product Color
  • Transmitter Depth
  • Transmitter Weight (Approximate)
  • Transmitter Height
  • Transmitter Width
  • Maximum Video Resolution
  • Graphic Mode
  • Maximum Operating Distance
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Compliance
  • Packaged Quantity
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Warranty Information
  • Manufacturer
  • Product Type
  • Product Series
  • Device Type
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

The DKM FX Modular KVM Extender Interface Card extends visually lossless, high-resolution DisplayPort signals over CATx cable. It also features two USB HID ports so you can easily connect your keyboards, mice, and other devices. You can use the extender card with the DKM FX Chassis for matrix switching or as a point-to-point KVM extender.
The DKM FX Extender Card supports 4K resolutions (4096 x 2160 and 3840 x 2160) in single-head mode and up to 1920 x 1200 video in dual-head mode. Audio is directly reproduced by any connected displays with integrated speakers. The stereo signal can also be extracted and output separately.

  • Non-Returnable
  • Dual-Head DP video with resolutions up to 1920 x 1080 on each video head
  • Single-head DP video with resolutions up to 4096 x 2160
  • Support for USB HID keyboards and mice
  • (1) CATx port
  • Intelligent EDID management
  • Compatible with Windows, Linux, Mac, and other common operating systems
  • Supports embedded audio over DP connector (with compatible endpoints)
Brand
Brand Black Box Corporation
GPU / Graphics
Graphic Mode 4K
Networking & Connectivity
Connectivity Technology Wired
USB Ports
USB Yes
Number of USB Ports 2
DisplayPort
DisplayPort Yes
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
Camera / Webcam
Maximum Video Resolution 3840 x 2160
Size / Dimensions
Transmitter Weight (Approxima 9.60 oz
Transmitter Depth 5.75"
Transmitter Weight (Approximate) 9.60 oz
Transmitter Height 0.70"
Transmitter Width 5"
General Features
Maximum Operating Distance 32808.40 ft
Manufacturer Black Box Corporation
Device Type KVM Extender
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
Black Box DKM FX KVM Extender Transmitter - 32808.40 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 1 x Network (RJ-45) - 2 x USB - DisplayPort - For PC, Linux, Sun, Mac, Unix - TAA Compliant
