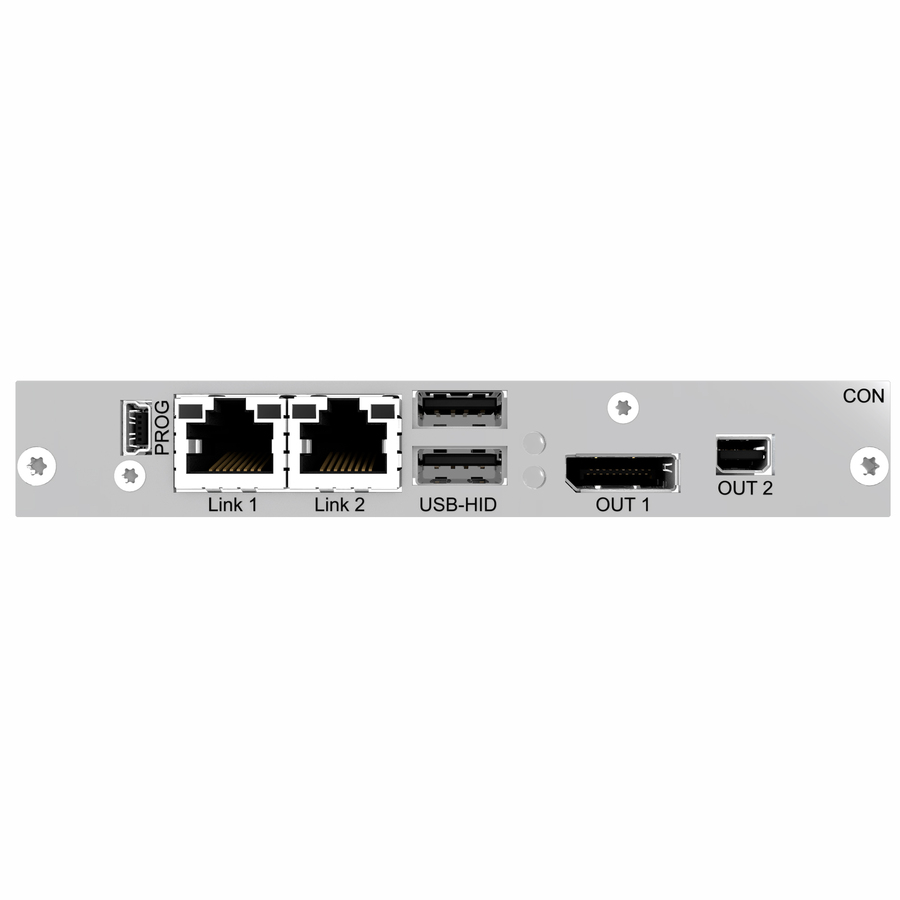

The DKM FX Modular KVM Extender Interface Card extends visually lossless, high-resolution DisplayPort signals over CATx cable. It also features two USB HID ports so you can easily connect your keyboards, mice, and other devices. You can use the extender card with the DKM FX Chassis for matrix switching or as a point-to-point KVM extender.
The DKM FX Extender Card supports 4K resolutions (4096 x 2160 and 3840 x 2160) in single-head mode and up to 1920 x 1200 video in dual-head mode. Audio is directly reproduced by any connected displays with integrated speakers. The stereo signal can also be extracted and output separately.
- Non-Returnable
- Dual-Head DP video with resolutions up to 1920 x 1080 on each video head
- Single-head DP video with resolutions up to 4096 x 2160
- Support for USB HID keyboards and mice
- (2) CATx ports for redundant connectivity
- Intelligent EDID management
- Compatible with Windows, Linux, Mac, and other common operating systems
- Supports embedded audio over the DP connector (if used with compatible endpoint)
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| GPU / Graphics | |
|---|---|
| Graphic Mode | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 2 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Size / Dimensions | |
|---|---|
| Receiver Width | 10.63" |
| Receiver Weight (Approximate) | 9.60 oz |
| Receiver Height | 1.63" |
| Receiver Depth | 7.75" |
| General Features | |
|---|---|
| Maximum Operating Distance | 459.32 ft |
| Manufacturer | Black Box Corporation |
| Device Type | KVM Extender |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
