Extend RS232, RS422 or RS485 protocols over multimode fiber so different types of equipment can talk to one another in point to point or multipoint environments. Serial extenders work well in factory automation, building automation, and process automation where PLC's with RS232, RS422 or RS485 interfaces are used to control devices. The ability to extend the distance to their devices over fiber while also adding protection from electrical interference which can be caused by large motors which are prevalent in these environments is very beneficial.
- Data-derived or RTS transmit/receive switching (RS-485)
- Indicator LEDS monitor signal and power
- Extended ambient operating range -40 to +176° F (-40 to +80° C)
- Ideal for fiber applications that use different interface protocols.
- Communicate signals in a point-to-point or ring topology.
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Power Source | DC |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | No |
| Audio | |
|---|---|
| Digital Audio | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Rail-mountable |
| General Features | |
|---|---|
| Digital Audio/Video | No |
| Maximum Distance Supported | 4 km |
| Manufacturer | Black Box Corporation |
| Product Condition | New |
| Video Ports | |
|---|---|
| DVI | No |
| Misc Ports | |
|---|---|
| Management Port | No |
| Total Number of Ports | 2 |
| Number of Serial Ports | 1 |
| Parallel Port | No |
| ST Port Type | Duplex |
| Number of ST Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |

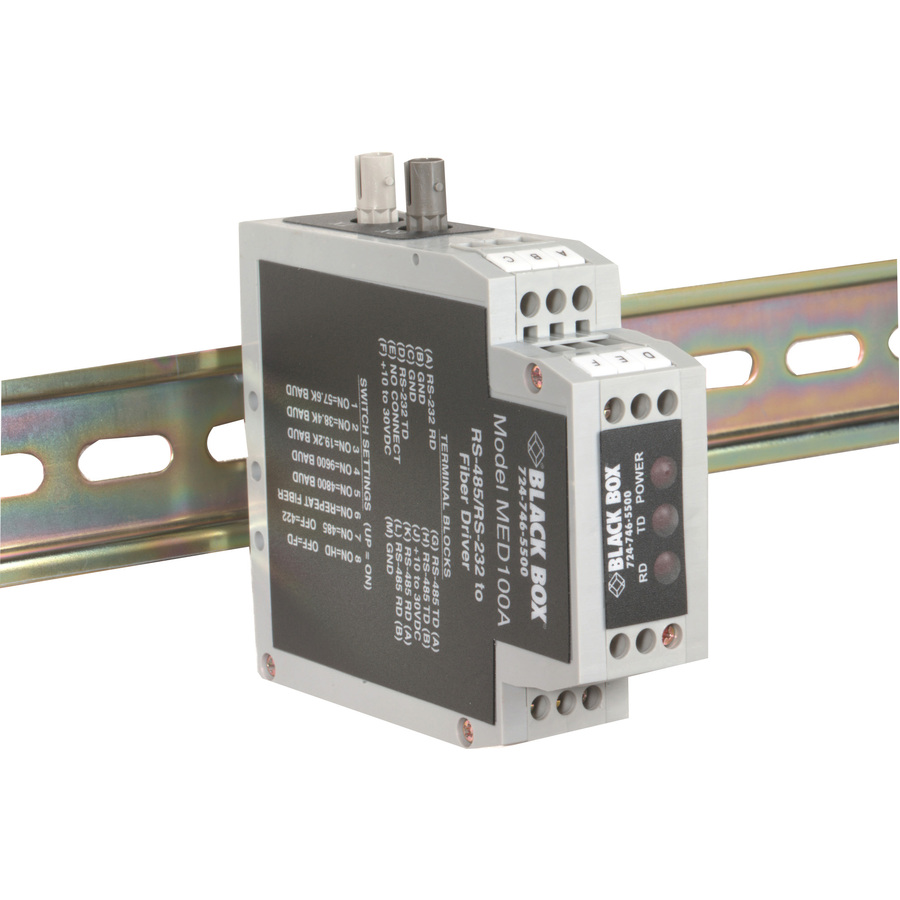

Black Box DIN Rail RS-232/RS-485 To Fiber Driver - New - 1 x ST Ports - DuplexST Port - Multi-mode - 4 km - DC - Rail-mountable - TAA Compliant
