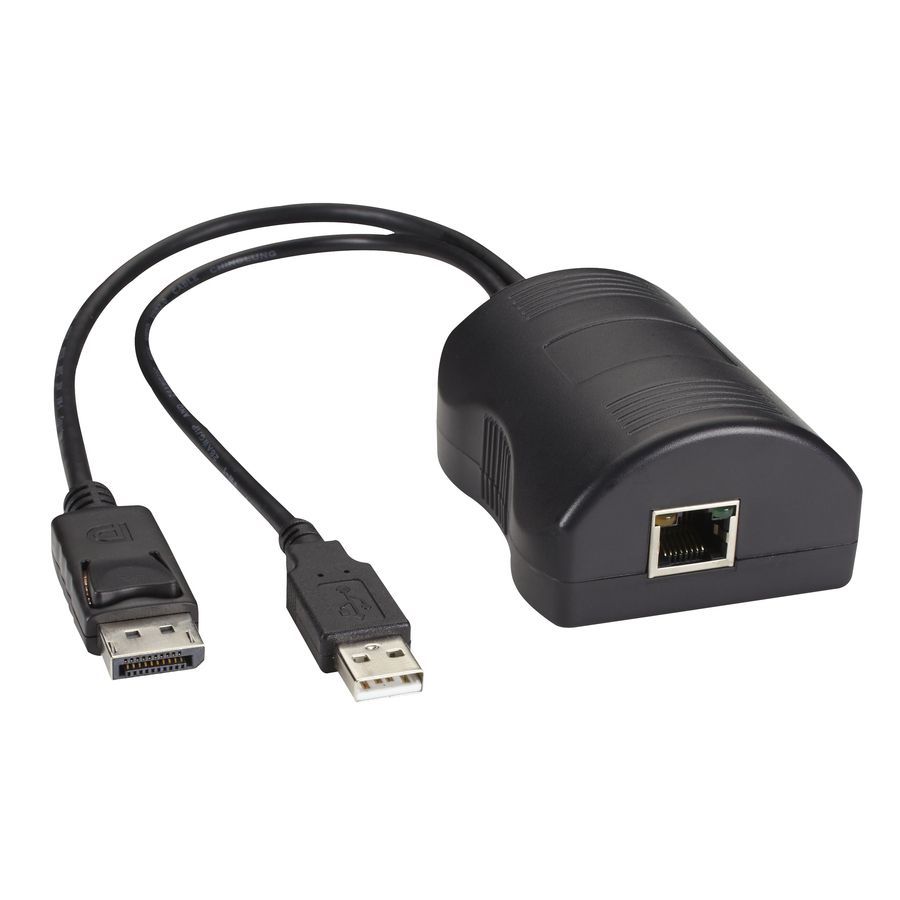

The interface-powered Server Access Modules (SAMs) extend DisplayPort, USB audio, and USB signals over CATx cable from individual servers to the central switching unit (DCX1000 or DCX3000).
- Supports resolution up to 1920x1200 at 60 Hz
- Powered via USB interface
- Go up to 164 feet (50 m) from the central DCX3000 Digital KVM Matrix Switch
- The SAM connects to the server, then to CATx cabling to the switch
- Interface-powered SAMs extend DisplayPort, USB audio, and USB signals over CATx cable
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 1 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| General Features | |
|---|---|
| Maximum Operating Distance | 164.04 ft |
| Manufacturer | Black Box Corporation |
| Device Type | KVM Extender |
| Number of Computers Supported | 1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | DCX Server Access Module - DisplayPort + USB |
Black Box DCX Server Access Module - DisplayPort + USB - 1 Computer(s) - 164.04 ft Range - 1920 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 1 x USB - DisplayPort
