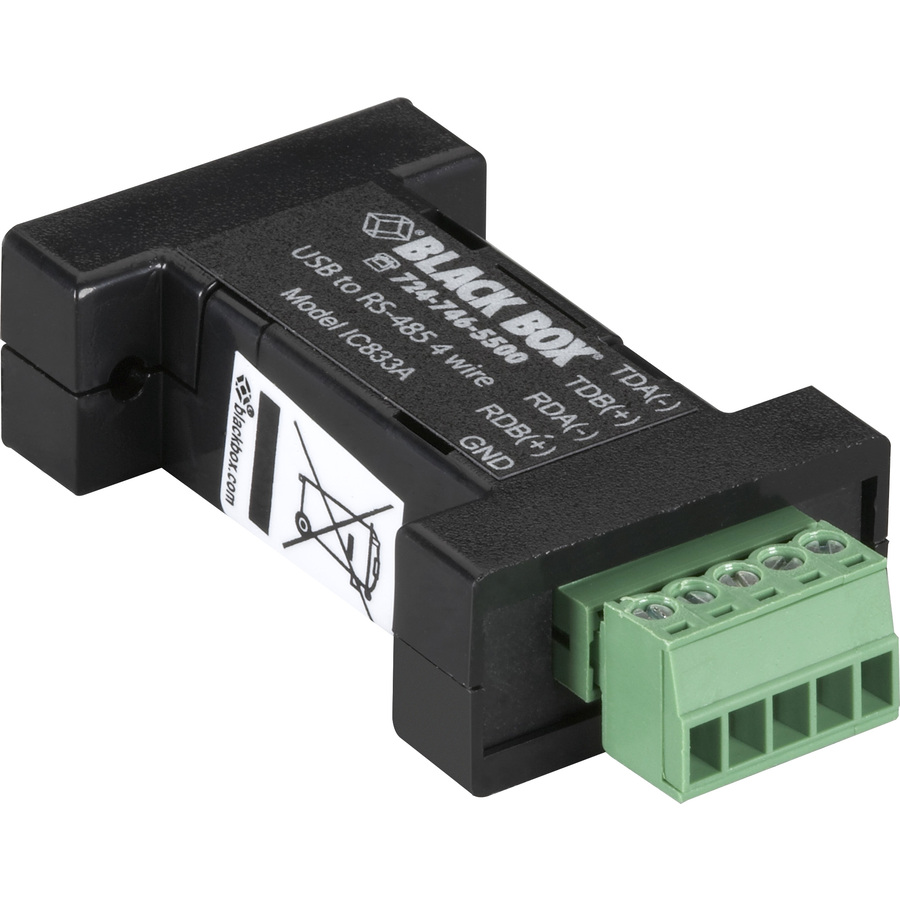

Black Box DB9 Mini Converter (USB to Serial), USB/RS-485 (4-wire, Terminal Block)

$ 134.99 $ 134.99
$ 134.99

$ 134.99 / Units
  • Brand
  • Depth
  • Connector on Second End Detai
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Connector Type on First End
  • Connector on First End Details
  • Connector Type on Second End
  • Connector on Second End Details
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Adapter Type
  • Manufacturer
  • Product Type
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
  • Automatic configuration on Windows 98, ME, 2000, XP, and Vista systems.
  • Powered from the USB interface.
  • Includes 3-ft. (0.9 m) USB cable.

USB is the connectivity standard for today's PCs, replacing familiar serial ports. However, many commercial and industrial devices still use RS-232, RS-422, or RS-485 interfaces. To connect these devices to modern PCs, you need simple and reliable converters.

The Black Box Mini USB-to-Serial Converter offer USB-to-serial conversion in a space saving package. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers supplied on CD ROM. The serial device will show up as an additional COM port in the Windows Device Manager.

RS-485 (two- and four-wire)
  • Support TDA, TDB, RDA, RDB, and GND.
  • Baud rates up to 921 Kbps.
  • Use on RS-485 2-wire or RS-422/485 4-wire networks.
  • Support Send Data Control (SDC).

RS-232
  • Full handshake support (TD, RD, RTS, CTS, DTR, DSR, DCD, RI, GND).
  • Baud rates up to 460 Kbps.
  • Powered from the USB interface
  • RS485 baud rates up to 921 Kbps.
  • Supports USB 1.0, 1.1, and 2.0 (12 Mbps).
  • Add a COM port to your PC or laptop.
  • Use legacy serial devices with PC and laptop USB ports.
Brand
Brand Black Box Corporation
General Features
Manufacturer Black Box Corporation
Cables
Connector Type on First End USB 2.0 Type B - Female
Connector on First End Details 1 x Type B USB 2.0 USB Female
Connector Type on Second End DB-9 RS-485 Serial
Connector on Second End Details 1 x 9-pin DB-9 RS-485 Serial
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
Miscellaneous
Product Name Terminal Block) , USB/RS-485 (4-wire , DB9 Mini Converter (USB to Serial)
Adapter Type Serial/USB
Black Box DB9 Mini Converter (USB to Serial), USB/RS-485 (4-wire, Terminal Block) - 1 x Type B USB 2.0 USB Female - 1 x 9-pin DB-9 RS-485 Serial - TAA Compliant
