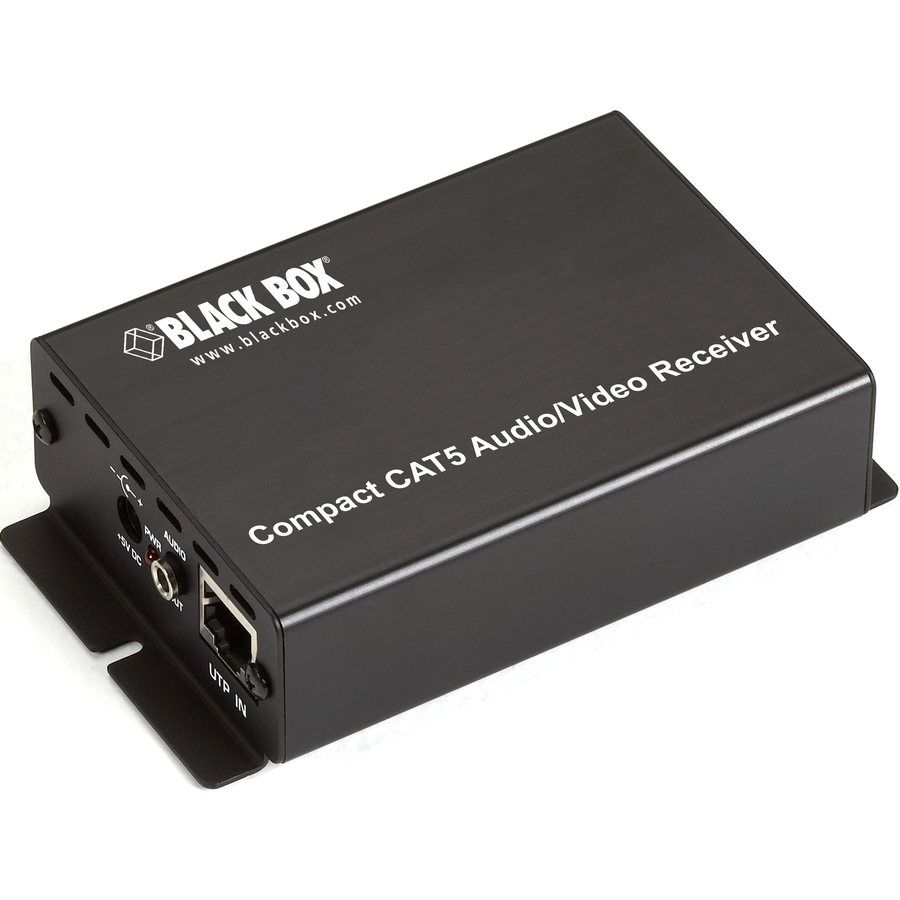

Black Box Compact CAT5 Audio/Video Receiver

$ 404.99 $ 404.99
$ 404.99

$ 404.99 / Units
  • Brand
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Number of Output Devices Supp
  • Connectivity Technology
  • Network (RJ-45)
  • Headphone
  • VGA Out
  • Number of VGA Outputs
  • Twisted Pair Cable Standard
  • Receiver Width
  • Receiver Weight (Approximate)
  • Receiver Height
  • Receiver Depth
  • Maximum Video Resolution
  • Media Type Supported
  • Input Voltage
  • Graphics Modes
  • Maximum Operating Distance
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Description

Compact CAT5 Audio/Video Receiver


Quick Facts
  • Works with Compact CAT5 Audio/Video Splitters.
  • Order this receiver for each remote station. (You'll also need a splitter [AC154A-2 or AC154A-8] for the CPU end.)
  • Plug-and-play.
  • There's no software to install, and there are no switches to set.
  • Uses CAT5 cable (shielded CAT5 is recommended), so you may even be able to use it on the cabling you already have installed!
  • Video Extender Receiver provides efficient and feasible audio/video transmission, decoding, and extending
  • 1280 x 1024 maximum video resolution for a vivid, crystal clear display with added productivity
  • VGA out for your convenience and optimal audio/video output with maximum usage feasibility
  • Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
  • 1 output devices supported for maximum feasibility and usage convenience
  • 750 ft maximum operating distance for feasible operation and optimal coverage
  • SXGA graphics mode for stunning, lively video quality
Brand
Brand Black Box Corporation
GPU / Graphics
Graphics Modes SXGA
Power & Battery
Input Voltage 110 V AC
Networking & Connectivity
Connectivity Technology Wired
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Audio Ports
Headphone Yes
Camera / Webcam
Maximum Video Resolution 1280 x 1024
Size / Dimensions
Receiver Width 4.20"
Receiver Weight (Approximate) 9.60 oz
Receiver Height 1.20"
Receiver Depth 2.50"
General Features
Number of Output Devices Supp 1
Maximum Operating Distance 750 ft
Manufacturer Black Box Corporation
Video Ports
VGA Out Yes
Number of VGA Outputs 1
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Cables
Twisted Pair Cable Standard Category 5
Compliance & Certification
Environmentally Friendly Yes
