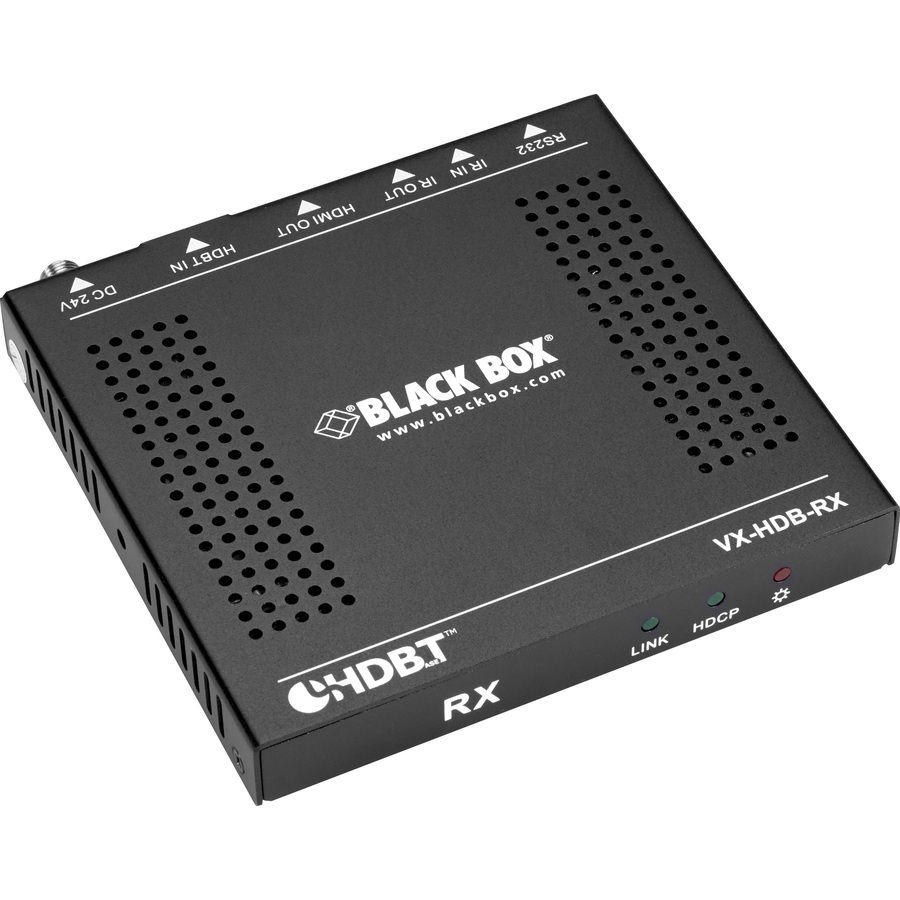

Extend an 1080p/4K HDMI signal over CAT5e/CAT6a cable up to 229 feet (70 meters). It also supports CEC, bidirectional RS-232 and IR control, and bidirectional PoC.
- LED indicators show work status
- Uses CATx technology
- Supports bidirectional PoC
- HDMI 1.4 and HDCP 2.2 compliant
- High-bandwidth: 10.2 Gbps
- HDTV compatible
- Maximum transmission distance is up to 131 feet (40 meters) for 4K x 2K and up to 229 feet (70 meters) for 1080p over a single CAT5e/CAT6a cable
- Supports full HD: Delivers a high-resolution image (1080p @ 60 Hz @ 48 b/pixels/3D/4K x 2K)
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K UHD |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI In | Yes |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Receiver Width | 4.50" |
| Receiver Weight (Approximate) | 6.91 oz |
| Receiver Height | 0.60" |
| Receiver Depth | 4.30" |
| General Features | |
|---|---|
| Maximum Operating Distance | 229 ft |
| Manufacturer | Black Box Corporation |
| Product Condition | New |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
