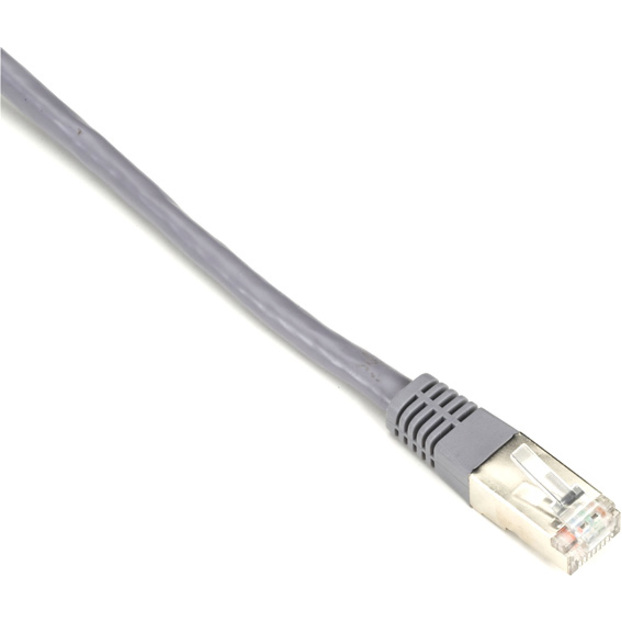

Black Box Shielded CAT5e patch cables are constructed to ensure the performance of your Fast Ethernet network in high noise environments: They feature four twisted pairs with Mylar tape, a drain wire and an overall aluminum/Mylar shield to protect against EMI/RFI interference that can distort or destroy your data. Tested to CAT5e standard 100-MHz performance, these cables meet or exceed the industry spec, ensuring the transmission of your voice, data, or audio/video signal. They feature plugs with 50-micron gold-plated contacts for superior conductivity.
These cables have connectors designed for an insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature molded slimline boots that are perfect for high-density applications, while providing extra strain relief. Available in a variety of lengths and colors, Black Box's line of Shielded CAT5e cabling gives you the flexibility to build your install however you want.
- This cable is perfect for 1000BASE-T, 100BASE-TX, 10-BASE-T and other high-speed applications
- Connector designed for an insertion and extraction life of 750 cycles
- 50-micron gold-plated contacts provide superior conductivity
- Molded slimline boots are ideal for high-density applications
- Cabling ETL verified to ANSI/TIA-568-B2
- Cable tested to meet or exceed CAT5e industry standard of 100 MHz
- Shielded CAT5e cable constructed to protect against EMI/RFI interference
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| General Features | |
|---|---|
| Data Transfer Rate | 1 Gbit/s |
| Manufacturer | Black Box Corporation |
| Cables | |
|---|---|
| Cable Length | 2 ft |
| Cable Type | Category 5e |
| Cable Characteristic | Patch Cable |
| Connector Type on First End | RJ-45 Network - Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Type | CM |
| Shielding | Yes |
| American Wire Gauge | 26 AWG |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
