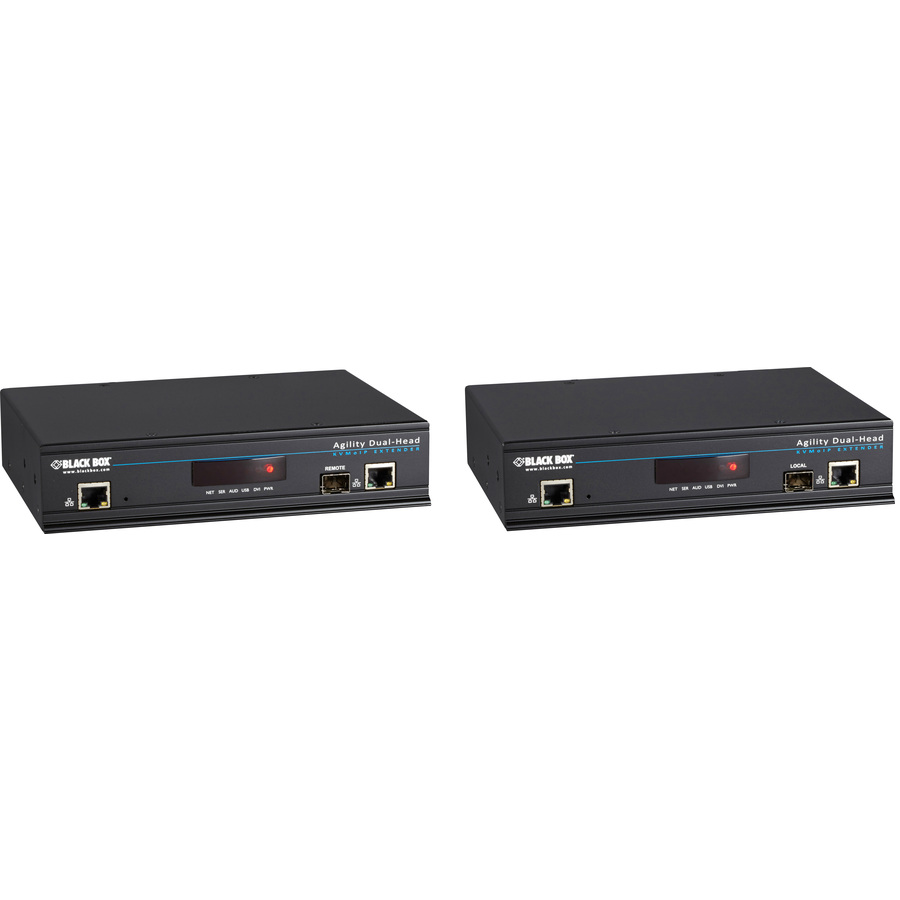

The Agility IP-Based KVM Extension system transmits Dual Head DVI-D video, USB, USB2.0 and audio signals via an Ethernet local area network (LAN). Send signals up to 330 feet (100 m), or even farther with the addition of network switches. Use the Agility Controller to enable remote secure configuration of transmitters and receivers via a Web browser. The Agility system offers a flexible topology of switching and extension. Use it in point-to-point KVM extension, to multicast HD video, or for single-target sharing. Agility transmits pixel-perfect video with no-loss compression, minimizing bandwidth use while maximizing user experience. Maximum resolution is 1920x1080.
- Data encryption via 128-bit AES.
- Magic Eye support to handle dithered video graphics.
- Supports a second LAN port to switch signals together (Teaming Mode), which increases bandwidth.
- Scalable high performance IP-Based KVM Extender and KVM Matrix system.
- No-loss compression minimizes bandwidth use while maximizing the user experience.
- Maximum resolution is 2 times 1920 x 1080 (1920 x 1200).
- Delivers perfect digital video with no loss.
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| GPU / Graphics | |
|---|---|
| Graphic Mode | Full HD |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 5 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Headphone | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1080 |
| Audio | |
|---|---|
| Microphone | Yes |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 2 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.76 lb |
| Receiver Width | 7.92" |
| Receiver Weight (Approximate) | 1.76 lb |
| Receiver Height | 1.76" |
| Receiver Depth | 4.80" |
| Transmitter Depth | 4.80" |
| Transmitter Height | 1.76" |
| Transmitter Width | 7.92" |
| General Features | |
|---|---|
| Maximum Operating Distance | 330 ft |
| Manufacturer | Black Box Corporation |
| Device Type | KVM Extender |
| Number of Computers Supported | 2 |
| Video Ports | |
|---|---|
| DVI | Yes |
| Number of DVI Ports | 4 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
