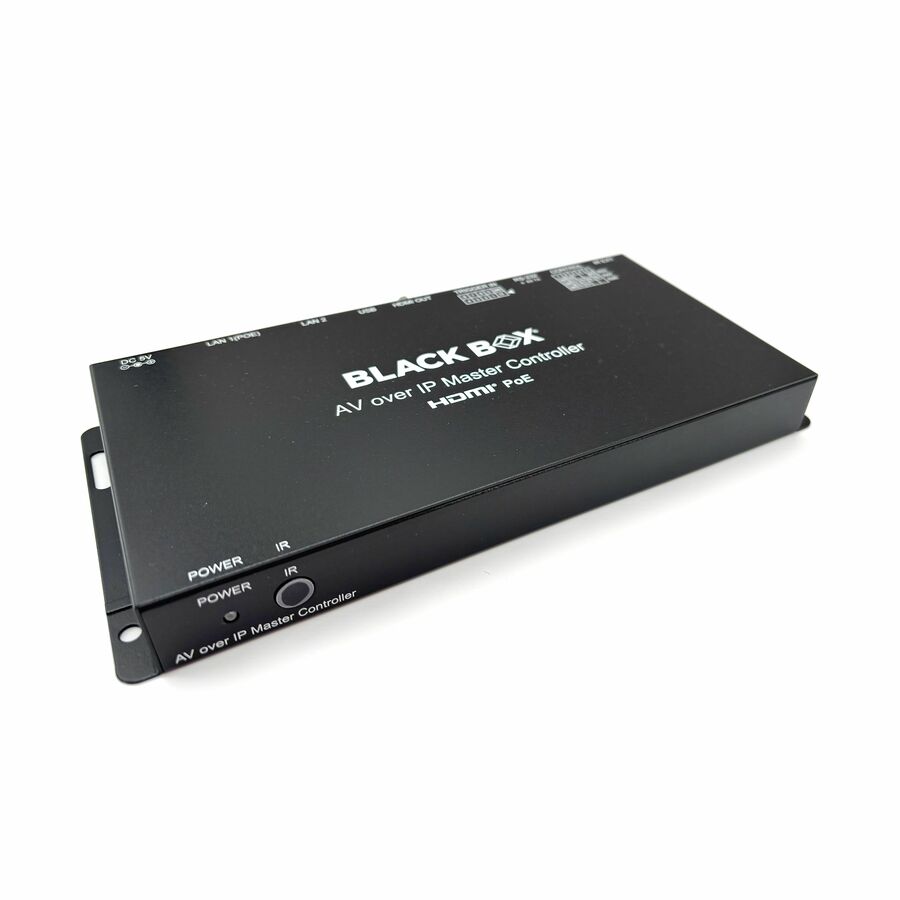

Add the MediaCento IPX Controller to the system and get IP-based matrix switching and video wall control.
Flexible matrix switching and video wall control
The MediaCento IPX controller brings cost-effective, flexible matrix switching and video wall control to a new level. The controller appliance enables customers to take full control over the IP-based MediaCento IPX transmitters and receivers and turns the system into an IP-based matrix switch and video wall controller.
Plug-and-play setup
Setup is easy. Plug the device into the network of the MediaCento units, and the device automatically detects any MediaCento units in the network. Pull them into the Web interface for easy configuration and control.
Two Ethernet interfaces for control from secondary network
If the AV signals are on a separate network, the MediaCento IPX control has two Ethernet ports that allow control from a secondary network. Run the AV signals on one network to prevent overloading the corporate network and simultaneously control the units from your cell phone or office computer on the corporate net.
Intuitive Web UI for remote content management
The control appliance includes interfaces, which allow you to switch from any source to any display, create presets and groups, create multi-zone layouts, combine multiple receivers into a video wall, and control and switch video wall zones remotely with a web browser or control system.
No port limitations
The IP-based system has no port limitations and can support hundreds of devices and video walls up to 16 x 16 in size.
Mobile support
The system also features mobile compatibility, which allows for easy access and monitoring of presets from cell phones or tablet devices.
- Remote Management
- Video Wall Scaling
- Flexible Routing and Control
- Network Segregation
- Power over Ethernet (PoE)
- Automatic Endpoint Detection
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100 V - 240 V |
| Input Voltage | 230 V AC |
| Output Voltage | 5 V DC |
| Power Source | PoE |
| USB Ports | |
|---|---|
| USB | Yes |
| General Features | |
|---|---|
| Manufacturer | Black Box Corporation |
| Cables | |
|---|---|
| Connector Type | HDMI |
| Compliance & Certification | |
|---|---|
| Humidity (Non-condensing) | 20% to 90% |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| TAA Compliant | Yes |
