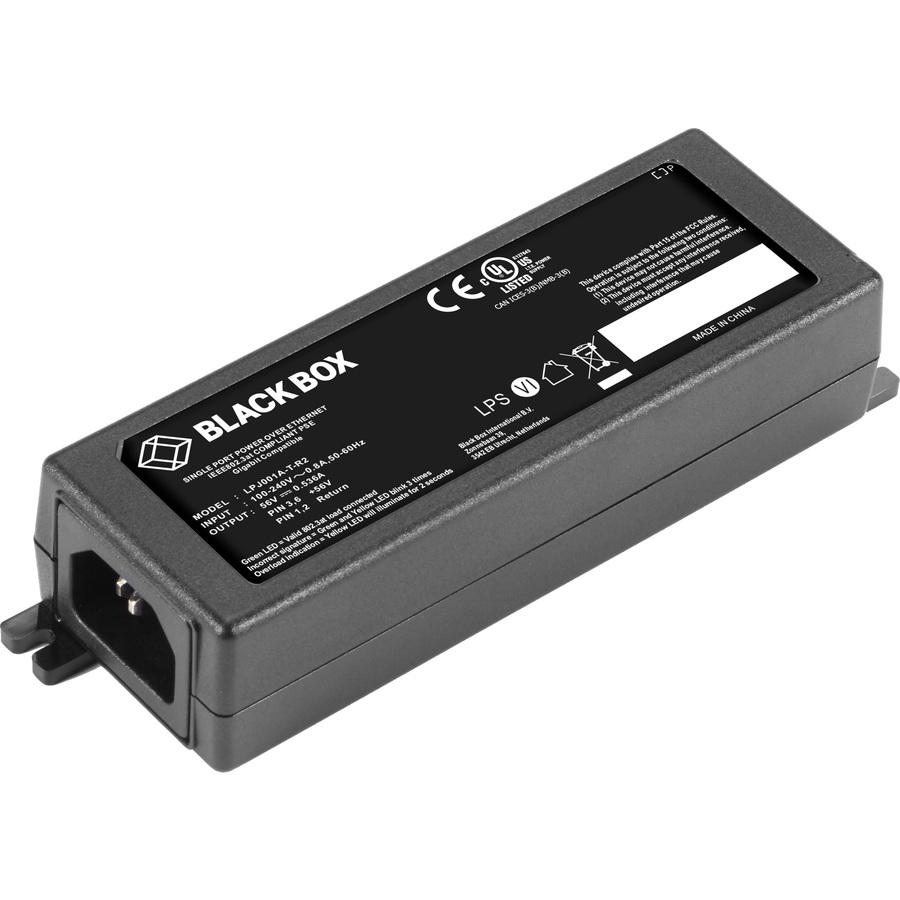

The Black Box PoE+ midspan injectors are used in Enterprise applications to power VoIP phones, wireless access points, IP security cameras and more. PoE+ injectors add power to the Ethernet link and will help you avoid upgrading non-PoE switch infrastructure. PoE enables you to avoid installing AC power at a remote powered device.
- Provides 30W of safe PoE Plus power to each device
- Supports Gigabit Ethernet data connections for high-speed equipment
- Ideal for multi-radio wireless access points, PTZ security cameras, IP phones containing streaming video displays, and LCDs
- Powers 802.3at and 802.3af compliant devices
- An economical wiring solution, carries both data and power over a single Ethernet cable
- Diagnostic LEDs indicate 802.3at device detection
- Supports 10-/100-/1000-Mbps midspan data connections on an RJ-45 input/output
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Maximum Output Voltage | 56 V DC |
| General Features | |
|---|---|
| Protection Type | Over Temperature |
| Maximum Frequency | 63 Hz |
| Minimum Frequency | 47 Hz |
| Manufacturer | Black Box Corporation |
| Product Condition | New |
| Misc Ports | |
|---|---|
| Output Ports | 1 x 10/100/1000Base-T |
| Input Ports | 1 x 10/100/1000Base-T |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | 10/100/1000BASE-T RJ45 POE+ Gigabit ETH Injector 802.3at 1PT |
