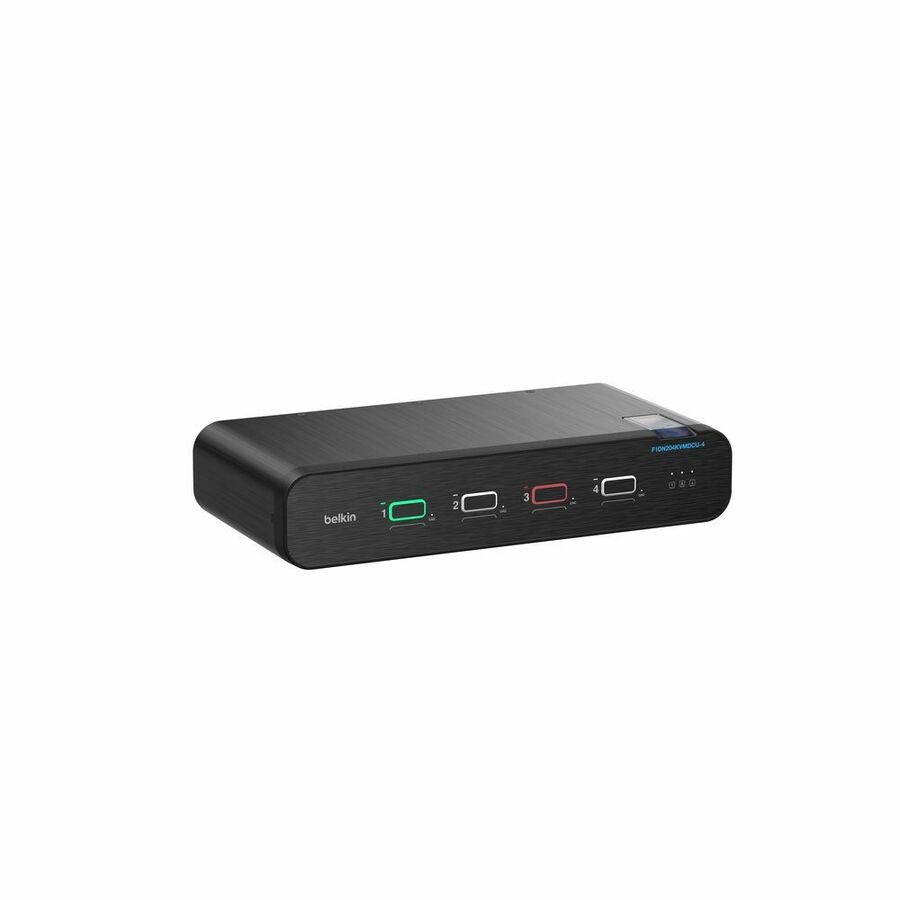

Universal DisplayPort SKVM, 4-Port Dual Head with CAC and USB-C
The Belkin Universal DisplayPort Series is a DP-connected setup combining cybersecurity provisions with robust video capabilities. The USB-C connection option is ideal for laptop users who can connect one cable from their laptop to the KVM instead of using a dock.
Developed for compliance with the highest cybersecurity protocols.
Designed for NIAP Protection Profile PSD 4.0, TAA and Common Criteria compliance to meet the stringent security standards required for government and military networks.
Minimize operator errors.
Preconfigured port coloring improves situational awareness and reduces operator errors.
Secure KVM Port Guide
- Power input
- Remote Control input
- CAC input
- Keyboard input
- Mouse input
- Keyboard and mouse USB-B input
- CAC USB-B input
- DisplayPort video outputs
- USB-C input
- DisplayPort video inputs
Secure supply chain with active anti-tamper.
Anti-tamper label and packaging thwarts unauthorized access and protects against sophisticated supply chain and internal attacks. Always-on, battery backed, active anti-tamper circuit protects the unit from a breach while in transit and after deployment.
Convenient compatibility with future proof design.
Compatible with the optional Belkin Remote Control with Integrated Keyboard, colorized desktop remotes, mounting solutions, TAA docks and extender portfolio.
- Designed for use on government and military networks and developed for compliance with NIAP Protection Profile PSD 4.0, TAA and Common Criteria
- Situational awareness: Convenient preconfigured port coloring ensures front panel facilitates channel identification, reducing operator errors (channel 1 = green, 2 = white, 3 = red, 4 = white)
- Innovations for optimal user experience: Compatible with the Belkin Remote Control with Integrated Keyboard (F1DN008KBD) and colorized desktop remote controls, delivering the ultimate solution for decluttering the desk while enhancing the operator's awareness of the security domain they're working in
- True data path isolation: Optical data diodes prevent peripherals from being used to breach systems
- Tamper-proof system: Always-on, battery-backed, active anti-tamper circuit protects the unit from experiencing a breach while in transit and after deployment
- TAA-compliant: Assembled in the USA; U.S.-based technical support; secure packaging ensures integrity from factory to user sit
| Brand | |
|---|---|
| Brand | Belkin International |
| GPU / Graphics | |
|---|---|
| Graphic Mode | 4K |
| Power & Battery | |
|---|---|
| Input Voltage Range | 12VDC |
| Input Current | 2.50 A |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 10 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 8 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Maximum Operating Distance | 32808.40 ft |
| Manufacturer | Belkin International, Inc |
| Device Type | Secure KVM |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
