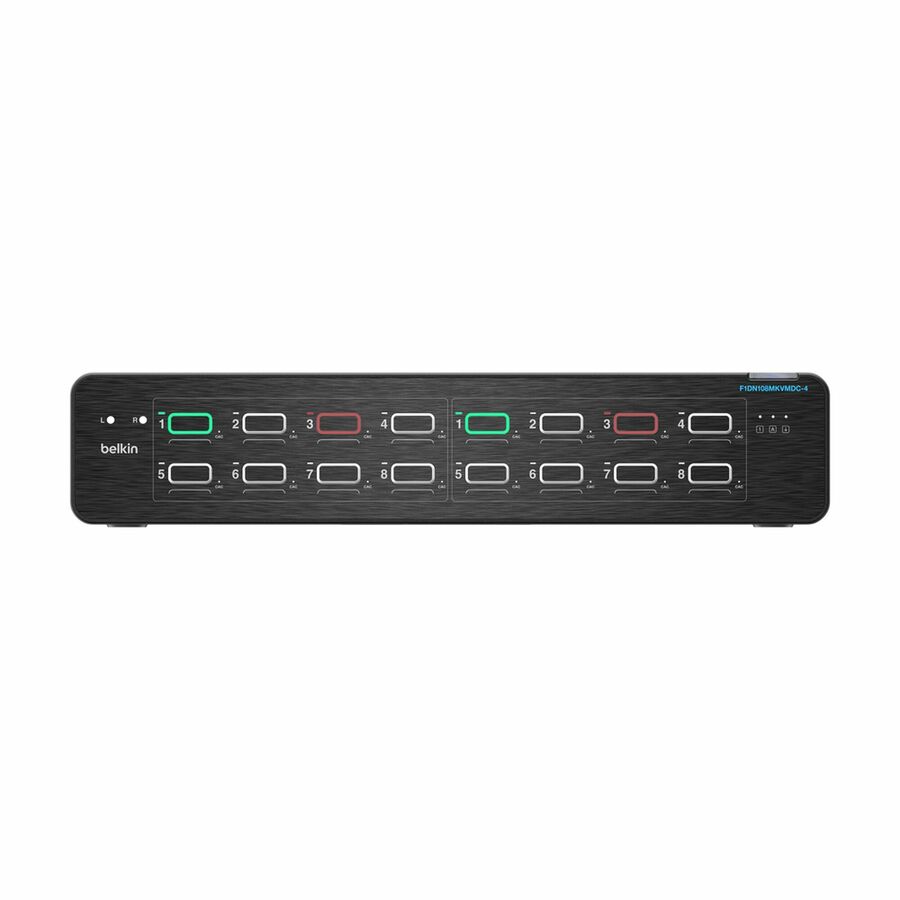

Universal DisplayPort DuoClave Secure KVM Series
Belkin Universal DisplayPort DuoClave Secure KVM Series is designed for use in defense and intelligence installations requiring consolidated control between computers at different security enclaves.
Developed for compliance with the highest cybersecurity standards.
Designed for NIAP Protection Profile PSD 4.0, TAA and Common Criteria compliance to meet the stringent security standards required for government and military networks.
Minimize operator errors.
Preconfigured port coloring improves situational awareness and reduces operator errors
Secure KVM Port Guide
- CAC input
- Remote Control input
- Keyboard input
- Mouse input
- Keyboard and mouse USB-B input
- CAC USB-B input
- Secondary DisplayPort output (DP B)
- Primary DisplayPort output (DP A)
- DisplayPort video inputs
- Power input
Secure supply chain with active anti-tamper.
Anti-tamper label and packaging thwarts unauthorized access and protects against sophisticated supply chain and internal attacks. Always-on, battery backed, active anti-tamper circuit protects the unit from a breach while in transit and after deployment.
See more, do more.
Simultaneously access and display up to two networks at once on one or two monitors for unparalleled efficiency and workflow.
- Designed for use on Government and Military networks and configured to meet NIAP Protection Profile PSD 4.0
- Built for secure multitasking, allowing efficient management and viewing of two active networks simultaneously on up to two displays
- Predefined configurations allow users to select the most common monitor layout for their specific working environment
- Situational awareness: Convenient preconfigured port coloring ensures front panel facilitates channel identification, reducing operator errors (channel 1 = green, 2 = white, 3 = red, all others = white)
- Key Press Seamless Cursor Switching (KPSCS)
- Keyboard control follows mouse as cursor crosses one physical display to the other with a keyboard key held down
- Lag-free, real-time switching
- Hardware-based solution eliminates keyboard and mouse delay when switching between ports, offering a fluid and intuitive user experience
- True data path isolation
- Optical data diodes prevent peripherals from being used to breach systems
| Brand | |
|---|---|
| Brand | Belkin International |
| GPU / Graphics | |
|---|---|
| Graphic Mode | 4K |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100-240 AC |
| Input Current | 4 A |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 19 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 10 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Manufacturer | Belkin International, Inc |
| Device Type | Secure KVM |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
