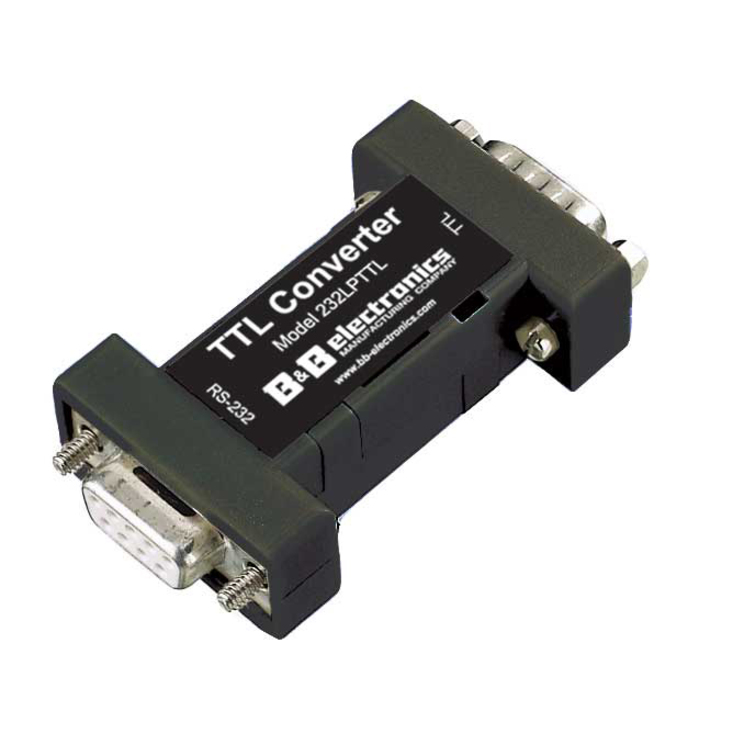

Model 232LPTTL converts RS-232 to 5VDC TTL/CMOS compatible levels. Model 232LPTTL33 converts RS-232 to 3.3VDC TTL/CMOS compatible levels. Two channels are used to convert from RS-232 to TTL/CMOS signals and two channels are used to convert from TTL/CMOS signals to RS-232. These converters support TD, RD, RTS, and CTS. DB9S female connector on the RS-232 side. DB9P male connector on the TTL/CMOS side. This unit is powered from the RS-232 data and handshake lines, whether the lines are high or low.
- The power connector adapter ensures perfect connectivity without power leakage, providing safe and efficient energy transmission always
- Serial adapter ensures long-lasting performance and durability
| Brand | |
|---|---|
| Brand | Advantech Co. |
| General Features | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Cables | |
|---|---|
| Connector Type on First End | DB-9 RS-232 Serial - Female |
| Connector on First End Details | 1 x 9-pin DB-9 RS-232 Serial Female |
| Connector Type on Second End | DB-9 Serial - Male |
| Miscellaneous | |
|---|---|
| Adapter Type | Serial |
