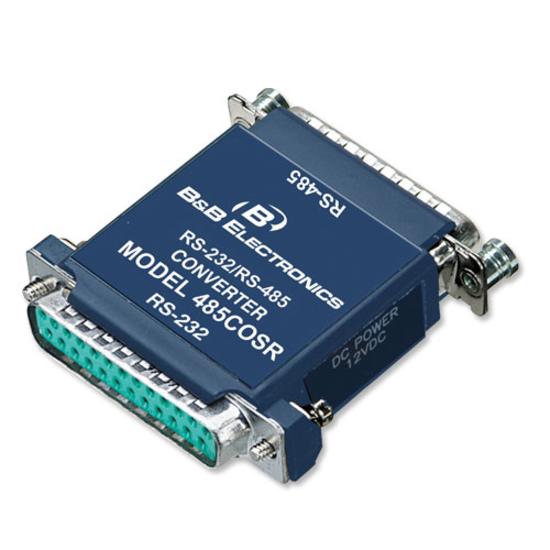

The RS-232 to RS-485 Converter converts unbalanced, full-duplex RS-232 signals to balanced full-duplex (4-wire), or half-duplex (2-wire) RS-485 signals. RS-485 is an enhanced version of the RS-422 balanced line standard.
The RS-232 port has a female DB25S type of connector with pins 2 (TD input) and 3(RD output) supported. Protective Ground (pin 1) and Signal Ground (pin 7) are also passed through. Pins 4(RTS) and 5(CTS) are tied together. Also pins 6(DSR), 8(CD), and 20(DTR) are tied together, but not passed through the converter. The RS-485 port has a male DB25P type of connector with the Send Data outputs on pins 2 and 14, and Receive Data inputs on pins 3 and 16 or 5 and 17.
- The data transfer adapter moves files between devices quickly and easily, ensuring smooth and efficient data transfer every time
- Serial adapter offers quick replacement for hassle-free connectivity
| Brand | |
|---|---|
| Brand | Advantech Co. |
| General Features | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Cables | |
|---|---|
| Connector Type on First End | DB-25 RS-232 Serial - Female |
| Connector on First End Details | 1 x 25-pin DB-25 RS-232 Serial Female |
| Connector Type on Second End | DB-25 RS-485 Serial - Male |
| Miscellaneous | |
|---|---|
| Adapter Type | Serial |
