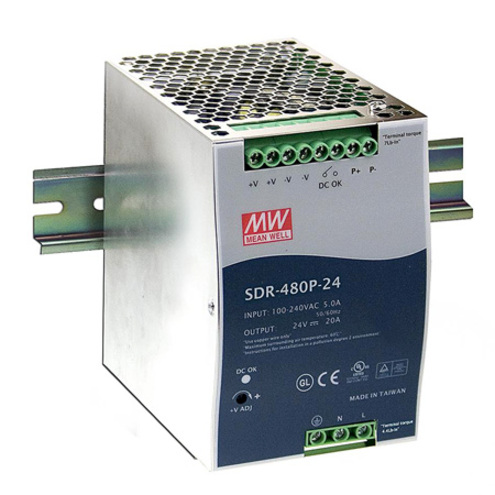

Model SDR-480P-24 power supply is enclose in a DIN rail mountable case with touch-guard screw terminals and features universal input, single output, power-on LED display, built-in active PFC function, DC OK relay contact and peak load capability. The power supply protects against short circuit, overvoltage and overload by current limiting (hiccup after 3s). Model SDR-480P-24 also supports parallel function.
- Supplies power to the electrical load to keep up with the power requirements
- 24 V DC ensures the safety of your device
- The maximum output power of 480 W boosts up the performance
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Input Voltage | 370 V DC |
| Output Voltage | 24 V DC |
| Output Current | 20 A |
| Output Power | 480 W |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Mountable |
| General Features | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
