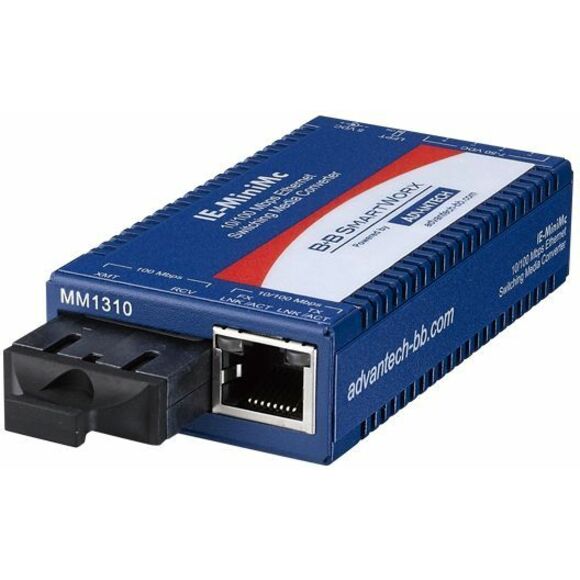

Mini Hardened Media Converter, 100Mbps, Single mode 1310nm, LFPT, 40km, SC
- Centralized powered IMC-318I chassis
- Supports Link Fault Pass Through functionality (LFPT)
- IEEE802.3af compliant (as PoE-PD)
- Industrial grade design that supports an extended operating temperature
- Metal enclosure with compact size
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 100Base-X technology get up to 100Mbps data transfer rate over supported network cable
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Power Source | DC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| PoE Port Type | PD |
| General Features | |
|---|---|
| Maximum Distance Supported | 40 km |
| Manufacturer | Advantech Co., Ltd |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Miscellaneous | |
|---|---|
| Product Name | IE-MiniMc IMC-350I Transceiver/Media Converter |
B+B SmartWorx IE-MiniMc IMC-350I Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - Single-mode - 1310 nm Fiber - Fast Ethernet - 100Base-X, 100Base-T - 40 km - DC
