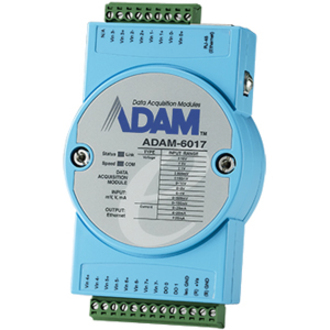

The ADAM-6017 is designed with 8 analog inputs and 2 digital outputs to satisfy all plant needs. Each analog channel is allowed to configure an individual range for variety of applications.
- Provides math. Functions: Max., Min., Avg.
- Provide default/customized web page
- I/O type: 8 AI / 2 DO
- Input type: mV, V, mA
- 10/100 Mbps communication rate
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Power Source | DC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100Base-TX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Maximum Distance Supported | 0.10 km |
| Manufacturer | Advantech Co., Ltd |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
B+B SmartWorx 8-ch Isolated Analog Input Modbus TCP Module with 2-ch DO - 1 x Network (RJ-45) - Fast Ethernet - 10/100Base-TX - 0.10 km - DC
