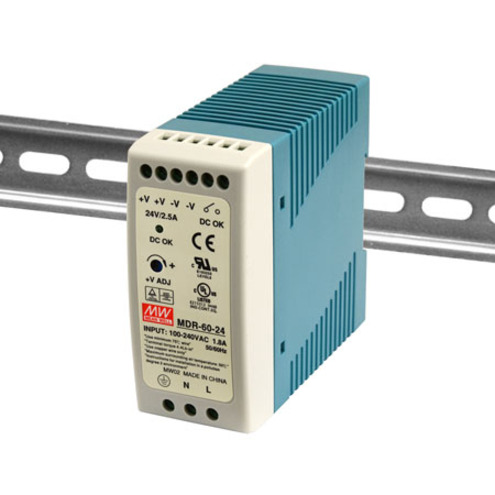

Model MDR-60-24 is an industrial single-phase, low-profile, low cost power supply suitable for installations where space is at a premium - ideal for control panels and other industrial, control and automation applications. This switched-mode unit features a wide operating temperature range, finger-safe terminals and protection from short-circuit, overload and over-voltage. The power supply is adaptable to TS-35 / 7.5 or 15 DIN mount installation.
- Single phase
- DC OK signal output
- No load power consumption
- Built-in active PFC function
- Short-circuit, overload, over-voltage protection
- Mountable on industrial DIN rail TS-35 / 7.5 or 15
- DC OK relay contact
- Class I/Division 2 Hazardous Locations T4
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Input Voltage | 370 V DC |
| Output Voltage | 24 V DC |
| Output Current | 2.50 A |
| Efficiency | 88% |
| Output Power | 60 W |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail Mountable |
| General Features | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
