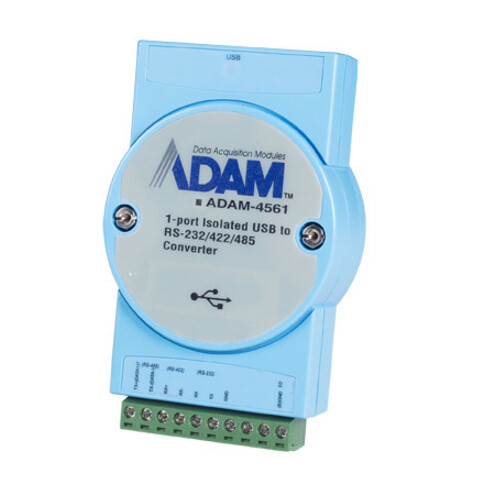

To attach the ADAM-4561/4562 to a PC, you don't need to open the chassis or power down your PC. Instantly get one or two extra high-speed RS-232/422/485 ports. The power is derived from the USB port, so there are no power adapters to deal with. Thismakes the ADAM-4561/4562 especially suitable for modems, printers, POS systems and industrial control devices.
- Hot swap function supported
- Plug & Play installation
- No additional IRQs or I/O ports required
- No external power supply necessary; the hub derives its power from the USB port
- Isolation protection 3000 VDC provided
- Automatic RS-485 data flow control
- RS-232/422/485 port supported
- Transmission speed up to 115.2 kbps
- Full compliance with USB V1.1 specifications
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Power Source | USB |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | External |
| General Features | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
B+B SmartWorx 1-port Isolated USB to RS-232/422/485 Converter - - USB - USB - External
