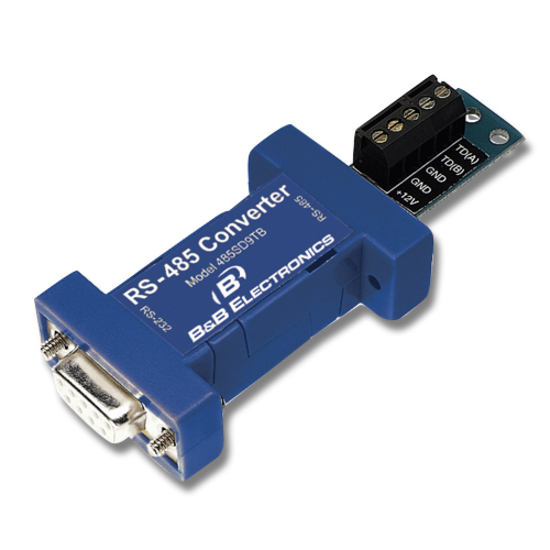

The 485SD9TB is a port-powered two-channel RS-232 to RS-485 converter. It converts the TD and RD RS-232 lines to balanced half-duplex RS-485 signals. The unit is powered from the RS-232 data and handshake lines whether the lines are high or low. An external power supply can be connected to two terminals on the RS-485 connector if no handshake lines are available. The 485SD9TB has a DB-9 female connector on the RS-232 side and a terminal block connector on the RS-485 side.
- Data transfer adapter enables consistent connectivity and dependable performance across devices
- Versatile and durable Serial adapter supports multiple connectivity needs
| Brand | |
|---|---|
| Brand | Advantech Co. |
| General Features | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Cables | |
|---|---|
| Connector Type on First End | DB-9 RS-232 Serial - Female |
| Connector on First End Details | 1 x 9-pin DB-9 RS-232 Serial Female |
| Connector Type on Second End | Terminal Block |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Adapter Type | Serial |
