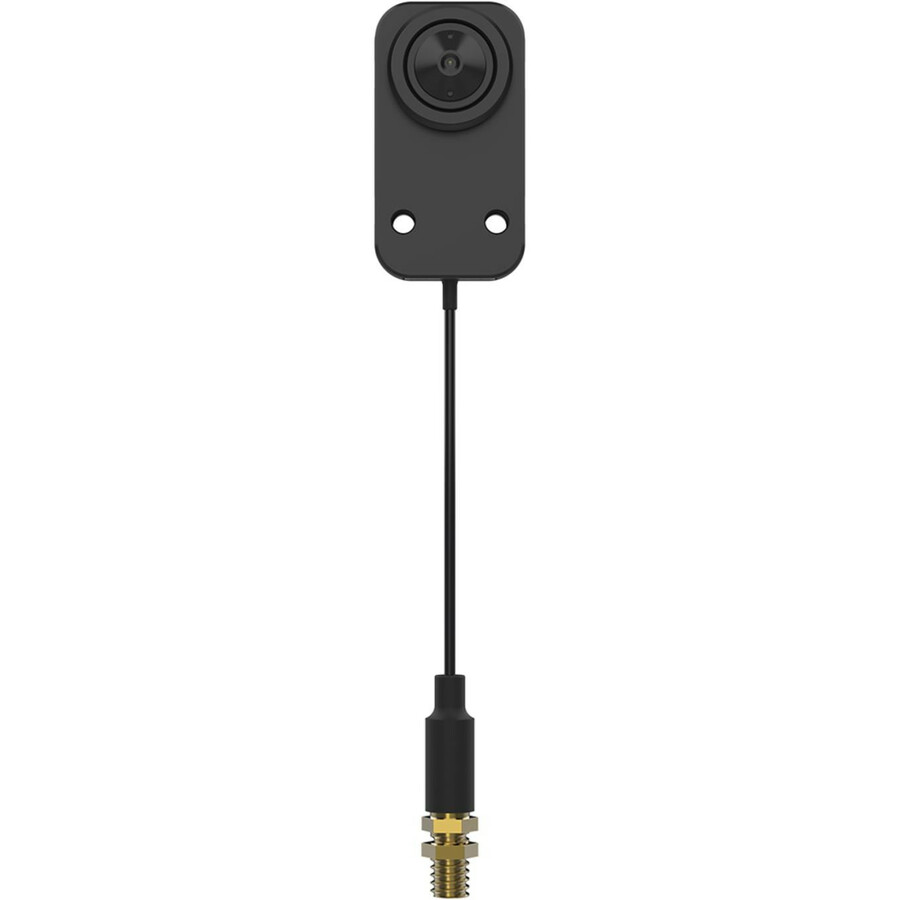

Only for use with 2nd generation main units and cables. Ideal for integration in tight spaces such as machines or ATMs, AXIS F7225-RE delivers high quality video even in challenging light conditions. Featuring a pinhole lens, it ensures highly discreet surveillance.
Extremely discreet
AXIS F7225-RE allows for extremely discreet surveillance where only the sensor is visible externally. Based on a divided network camera concept, it's designed for use with AXIS F91 main units to ensure maximum flexibility. And it offers easy installation-you can install it in tight places, behind metal, glass, or plastic sheets and more.
Cost-effective and flexible
Designed for both indoor and outdoor use, this IP66-/IP67-rated pinhole sensor can operate in temperatures from -40 to 55 °C (-40 to 131 °F). It can be connected to the main unit using cables up to 30 m (98 ft). Plus, with one main unit and up to four sensors, it offers lower installation and configuration costs compared to traditional cameras and requires just one VMS license. And, it ensures a lower power budget and requires fewer switch ports.
High video usability
AXIS F7225-RE delivers high quality video even in challenging light conditions. It supports four HDTV 1080p video streams at 30 fps or 720p video streams at up to 60 fps. When used with AXIS F91 main units, it delivers HDTV 1080p video streams at 60 fps or 720p video streams at up to 180 fps. In addition, when connected to an AXIS F91 main unit, it offers Forensic WDR for clarity when there's both dark and light areas in the scene. Furthermore, a 97� field of view allows for wide area coverage.
- Is a smart solution for using at homes and SMB security surveillance installations
- Up to 1920 x 1200 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 3.70 mm maximum focal length for dependable identification distances with better coverage
- f/2.5 maximum aperture for better light absorption and dependable, better-quality results
- Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
- Bracket mount allows better weight distribution and balances through the tripod
- Day/Night feature for maximum productivity with added dependability
- Wired connectivity technology offers maximum visual convenience
| Brand | |
|---|---|
| Brand | Axis Communications |
| Screen / Display | |
|---|---|
| Color Supported | Color |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Camera / Webcam | |
|---|---|
| HD Recording | Yes |
| Lens Included | Yes |
| Maximum Video Resolution | 1920 x 1200 |
| Image Sensor Type | CMOS |
| Maximum Focal Length | 3.70 mm |
| Maximum Aperture | f/2.5 |
| Lens Type | Fixed |
| Maximum Frame Rate | 180 fps |
| Lens Mount Type | M12-mount |
| Field of View | Horizontal field of view 92 ° / Vertical field of view 45 ° |
| Size / Dimensions | |
|---|---|
| Mount Type | Bracket Mount |
| General Features | |
|---|---|
| Indoor/Outdoor | Indoor/Outdoor |
| Video Formats | H.264M |
| Manufacturer | Axis Communications |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Humidity | 85% |
| Ingress Protection Rating | IP67 |
